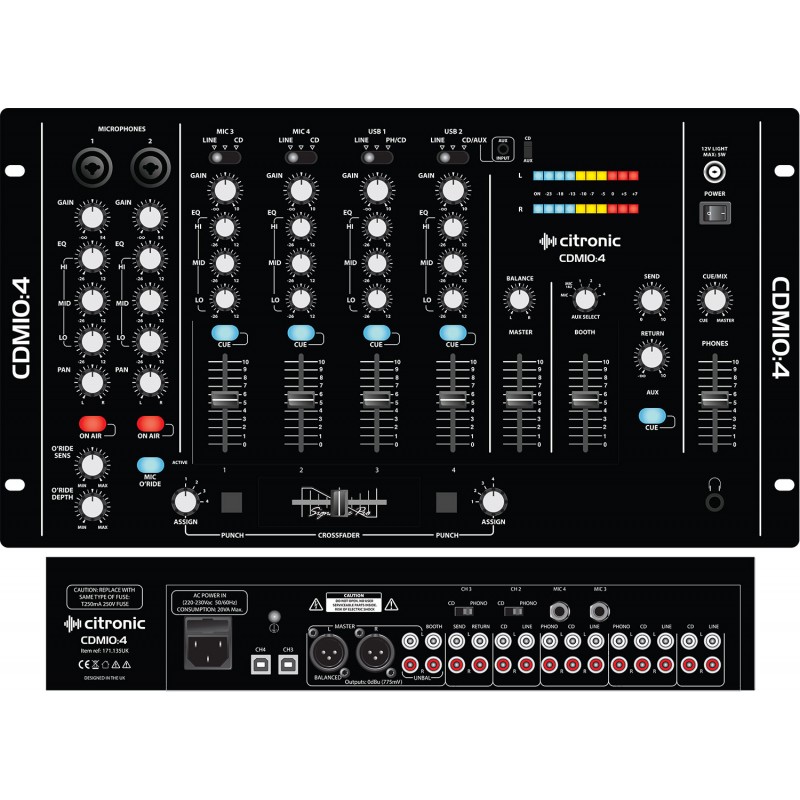

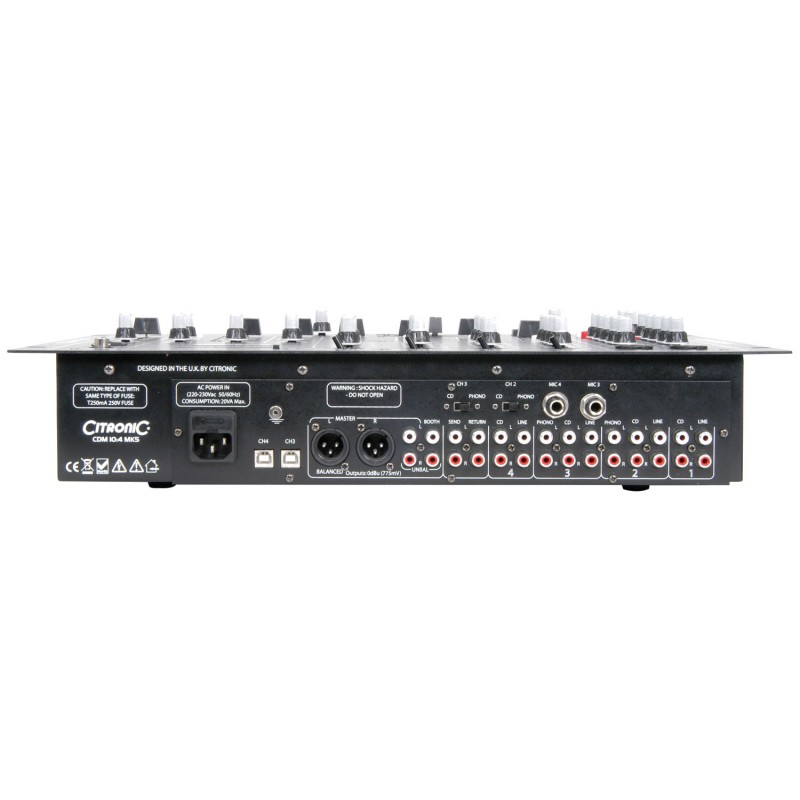

A classic mixer the Citronic CDM10:4 has always been the choice of the working DJ, with a simple layout that is packed with all the features you need. The MKV version comes with connectivity through USB and an additional auxiliary input on the top panel for external sound sources such as MP3 player.

Features

4 channel, 17 inputs

2 dedicated balanced mic channels with 3-band EQ

Mic override facility for DJ mics

2 auxiliary mics on channels 1 and 2

8 CD/line inputs (2 switchable to phono)

Top panel 3.5mm aux input for MP3 player

2 USB input/outputs for channels 3 and 4

Fully assignable VCA crossfader

Punch buttons

Hotswap channel faders

Individual gain control per channel

3-band EQ with total kill

Fully assignable send and return

10-bar LED monitor display

12V BNC light socket (light not supplied, 173.501 recommended)

Booth output

Balanced XLR and unbalanced RCA outputs

Rotatable back panel for convenient installation

19" (6U) rack mountable

Specification

Power supply    220-230Vac, 50/60Hz (IEC)

Fuse rating    T250mA (240V) / T500mA (110V)

Cutout    440 x 250mm

Equaliser : bass    +12dB, -26dB @ 100Hz

Equaliser : midrange    +12dB, -26dB @ 800Hz

Equaliser : treble    +12dB, -26dB @ 9kHz

Headphone output    112mV @ 32 Ohms

Input : line195mV, 50k Ohms

Input : mic    1.5mV, 2k Ohms

Input : phono    4mV, 47k Ohms

Signal to noise ratio : line    >87dB

Signal to noise ratio : mic    68dB

Signal to noise ratio : phono    73dB

Dimensions    483 x 266 x 80mm (6U)

Weight    5kg

Write a review

Note: HTML is not translated!
    Bad           Good

CDM10:4 (MK5) 19" 4 CHANNEL USB MIXER

  • Product Code: 171.135
  • Availability: In Stock
  • £370.50

  • Ex VAT: £308.75
