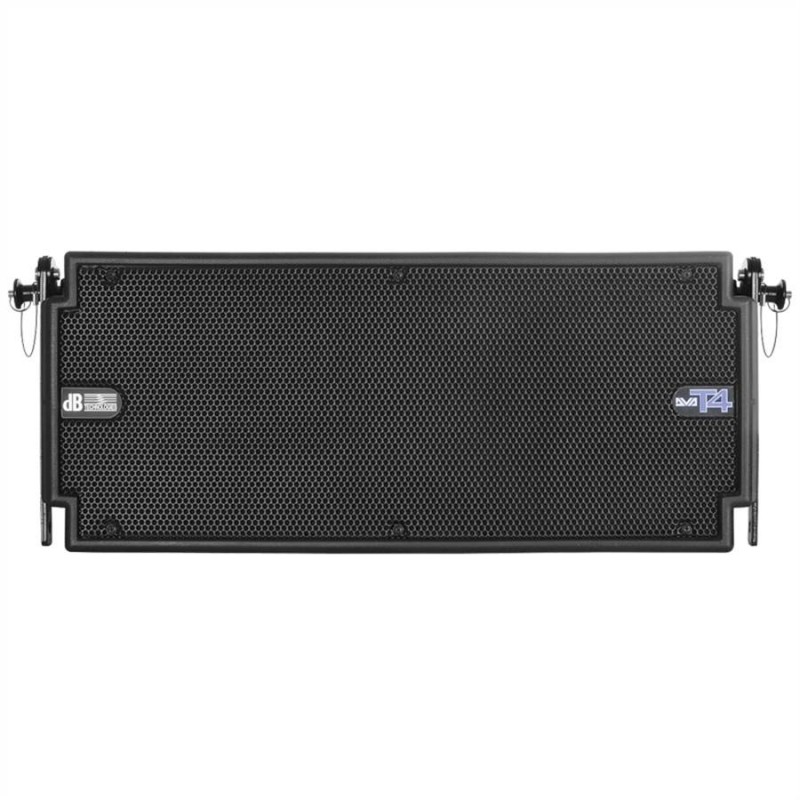

DB TECHNOLOGIES DVA T4Active Line Array module 8"/6.5"/1" 420 Watt RMS
The DVA T4 is equipped with unique digital power amps that provide a total of 420W RMS. Driven by Digipro® technology, their resolution is several-fold that of conventional digital amps.
They render signals very accurately with this high-definition audio capability.
Sonic images are almost impossible to distinguish from those of analog sources, even in the HF range.
The amps are equipped with high-quality delta-sigma converters.
The DVA T4‘s digital power amp features DPP™ (Digital Power Processing) technology and a multiband compressor/ limiter with separate response curves for each signal path. Its dynamic range is exceptionally wide.
For example, headroom in the middle and high-frequency bands ranges up to 22dB. This innovative circuitry not only maximizes dynamic response, it also ensures signals are rendered accurately and uniformly even at threshold levels.
The 8“ Neodymium-Woofer is equipped with a high power 2.5“ voice coil to provide superior sound pressure level in a very compact size.
The 6.5“ Neodymium-Midrange speaker has a sealed basket to provide an optimized volume capacity including high sensitivity and superb sound reproduction. It also has a horn exit including phase plug for defined and linear sound emission.
The build in 1”Neodymium- Drivers are equipped with a 1.4” Mylar- Membrane which allow a very quick response and provide a linear frequency range at a surprisingly low weight. This driver was specially designed for the use with Line- Arrays. Its compact measurements allow very close proximity which is a main factor for minimum interference.
Speaker Type: 3-Way Active Line Array Module
Frequency Response [+/- 3dB]: 80 - 19.000 Hz
Max SPL: One Unit: 128 dBHF: 2x1 "
Voice Coil HF: 1.4 "Directivity: 100x15° Single unit
MF: 1x 6.5 "Voice Coil MF: 1.5 "
LF: 8 "Voice Coil LF: 2.5 "
Digipro®Amp Class: Class DHF Amp: 100 W RM
SMF Amp: 100 W RMS
LF Amp: 220 W RMS
Controller: Analog Devices
AD/DA Converter: DSP 24 bit/48 kHzSystem Presets: 8, HF/Low-mid correction
Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
MF-HF: 1800 HzSlope
MF-HF: 24 dB/OctaveCrossover Frequency
LF-MF: 400 HzSlope
LF-MF: 24 dB/Octave

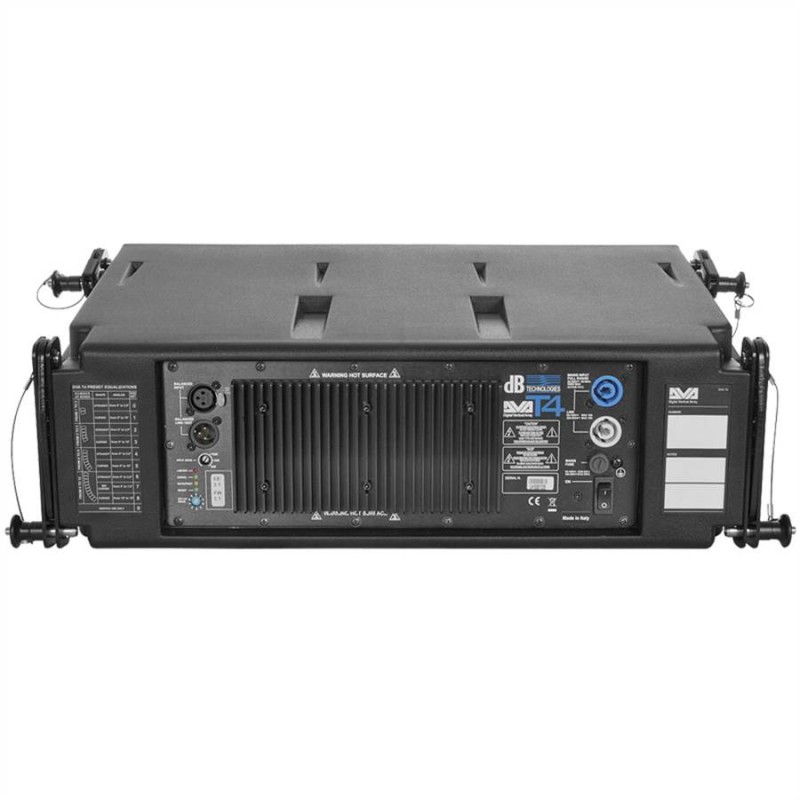

Input: 1x XLR fem, Bal.Signal
Output: 1x XLR male, Bal.
Power Socket: 1x Powercon In 1x Powercon Out
Voltage Range: 90 - 240 V
Housing:Polypropylen PP reinforced
Housing Design:Trapezoidal 15°
Rigging Points: Integrated rigging hardware
Width: 580 mm (23.2 in)
Height: 240 mm (9.6 in)
Depth: 327 mm (13.08 in)
Weight: 13.8 kg (30.42 lbs)
