B·Hype 15

OVERVIEW

B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

The new B-HYPE 15 is a versatile active speaker. It is equipped with one 1” neodymium compression driver (1” voice coil), and one 15” woofer (2” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

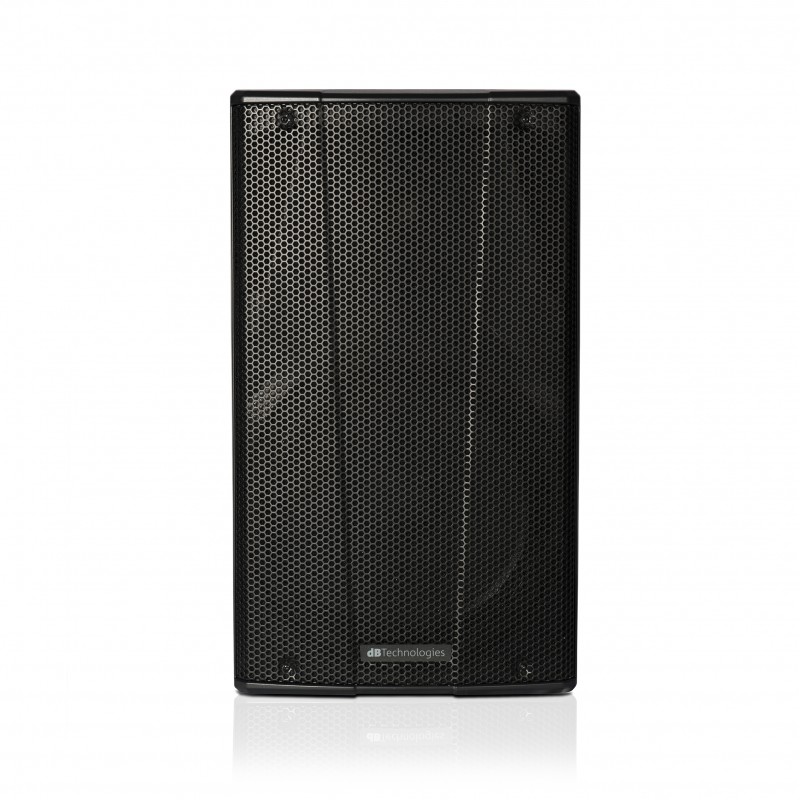

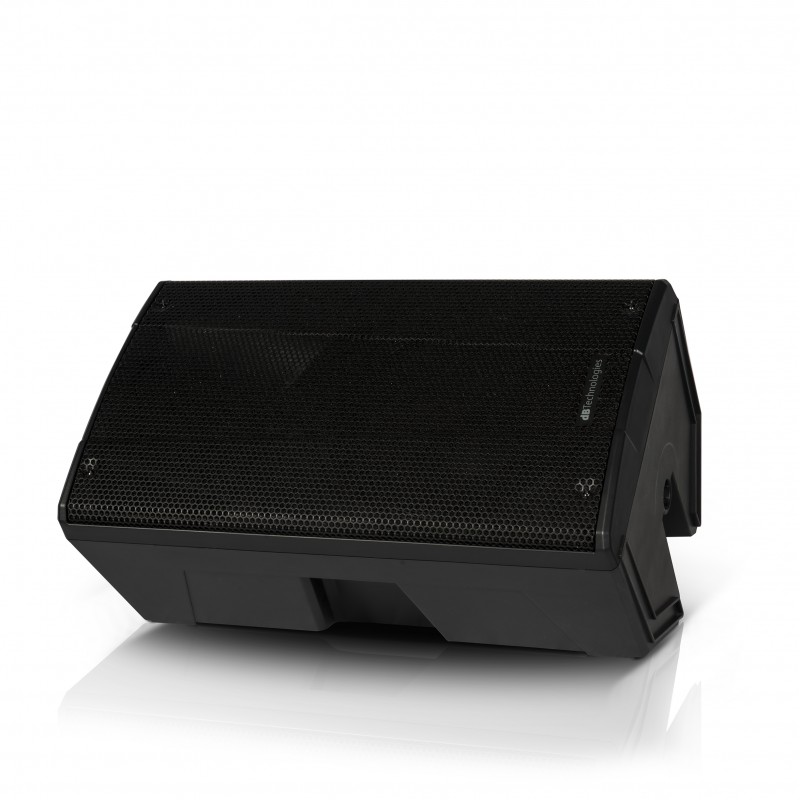

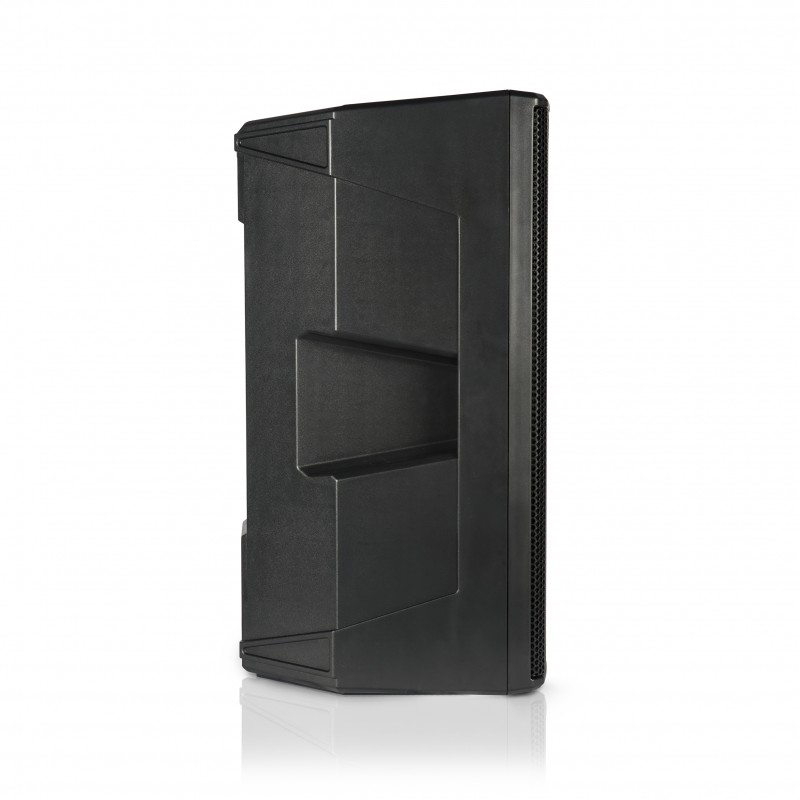

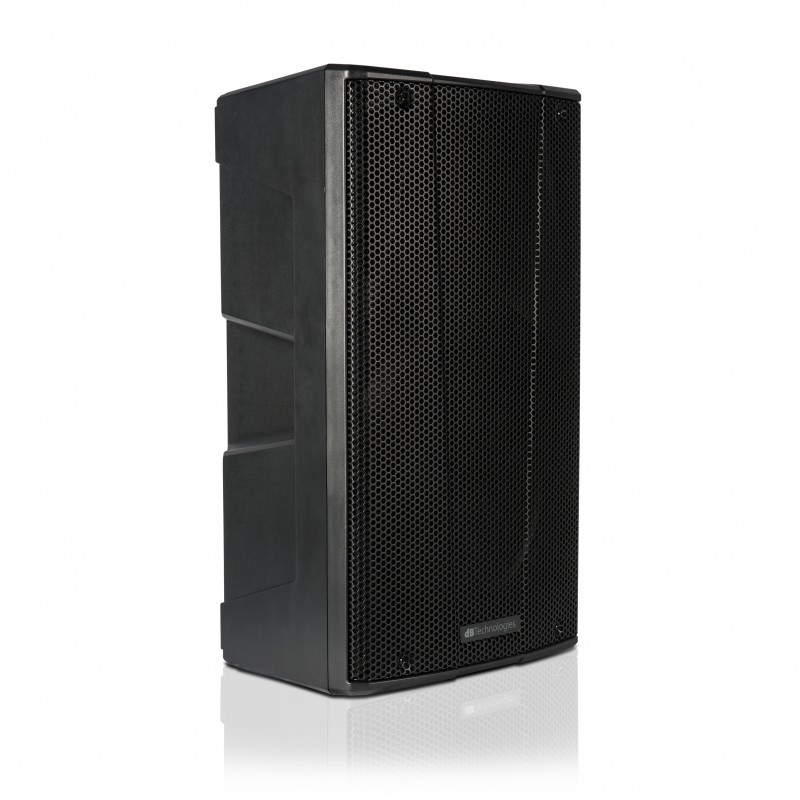

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

FEATURES

Maximum efficiency up to 126,5 dB SPL

Professional acoustic performance

Innovative horn design for uniform and extended coverage

Compact featherweight

Clean and contemporary design enhancing portability

3 handles

Double stage monitor angle

Preset EQ Flat /Boost

TECH SPECS
Speaker Type    2-Way Active Speaker

Acoustical data

Usable Bandwidth [-10dB]    51 - 20.000 Hz

Frequency Response [-6 dB]    57 - 19.700 Hz

Max SPL    126.5 dB

Type HF    Compression Driver

HF voice coil     1 "

LF    15 "

LF voice coil     2 "

Crossover Frequency     2100 Hz (24 dB/oct.)

Horizontal Dispersion     asymmetrical 85° up / 120°down

Vertical Dispersion     85° (+25/ -60°)

Amplifier

Amp Technology    Custom Made

Amp Class    Class D - Passice cooling (convection)

Power Peak     400 W

Processor

Controller    DSP 28/56 bit- 48 kHz

Limiter    Peak, RMS, Thermal

Controls     Volume, Audio Input Sensitivity, DSP Preset

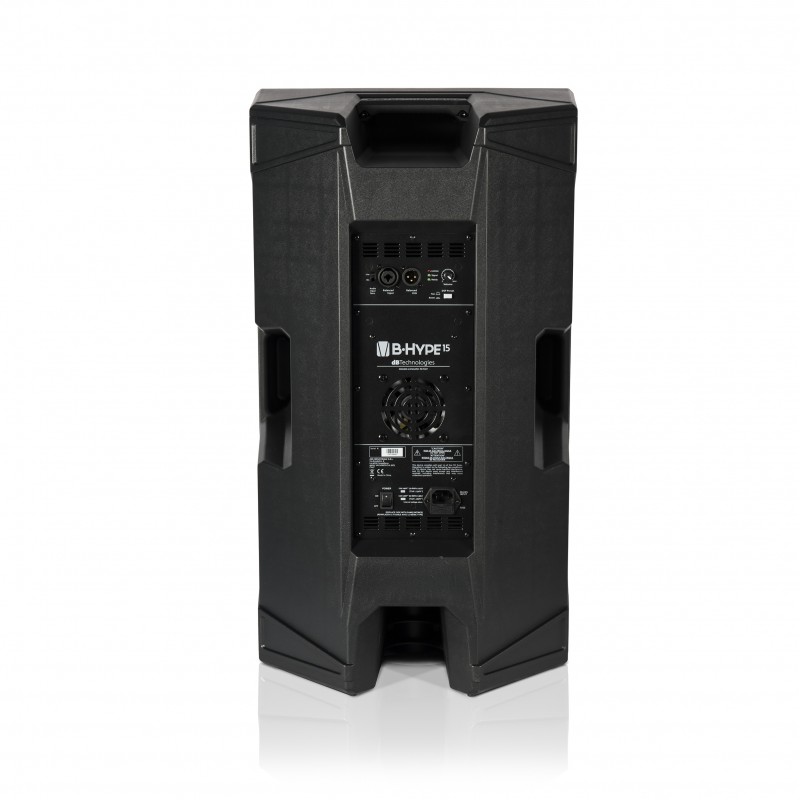

Input

Main Connection     VDE

Signal Input     Balanced 1xCombo IN (MIC/LINE)

SIGNAL Out     (Balanced) 1xXLR OUT (LINK)

Mechanics

Housing    Polypropylene

Grill     Full Metal Grill

Handles     3 (2 on side 1 on top)

Pole Mount     36 mm

Width    415 mm (16.34 in)

Height    725 mm (28.54 in)

Depth    391 mm (15.39 in)

Weight    17.4 kg (38.36 lbs)

Angles Up    Double wedge angle 45°
