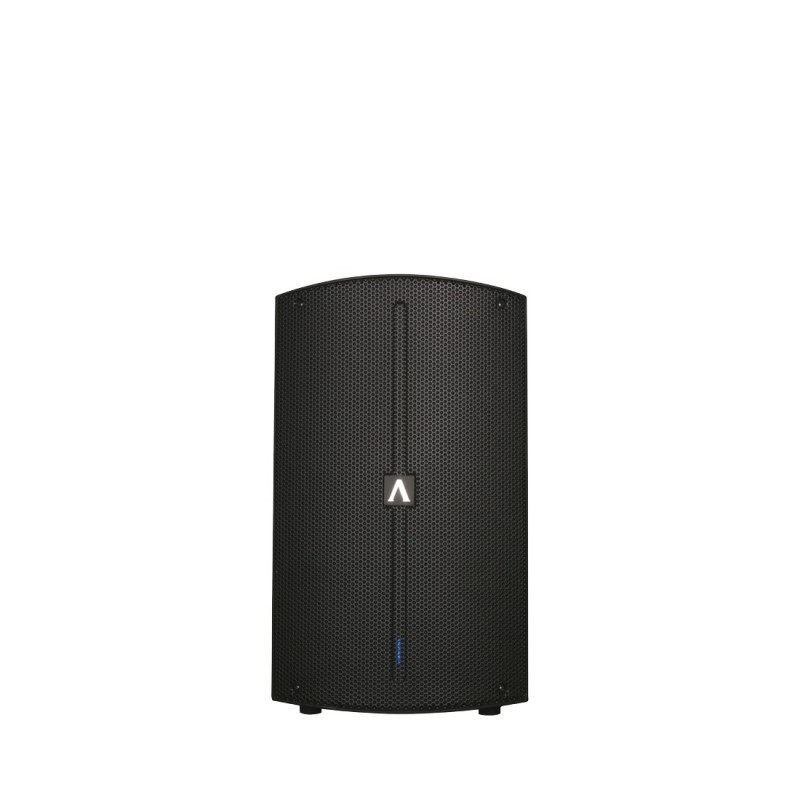

A10

The Avante A10, part of the Achromic Series from Avante Audio, is an active loudspeaker cabinet that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.

Specifications :

• 10-inch, 2-way active loudspeaker

• Frequency Range (-10db): 70Hz-20kHz

• Nominal Coverage: 90° x 60°• Output (Peak SPL @1M): 121dB

• Amplifier Power: 1000 W Dynamic, 250W Class D (LF) +50W Class AB (HF)

• Power Consumption: 400W

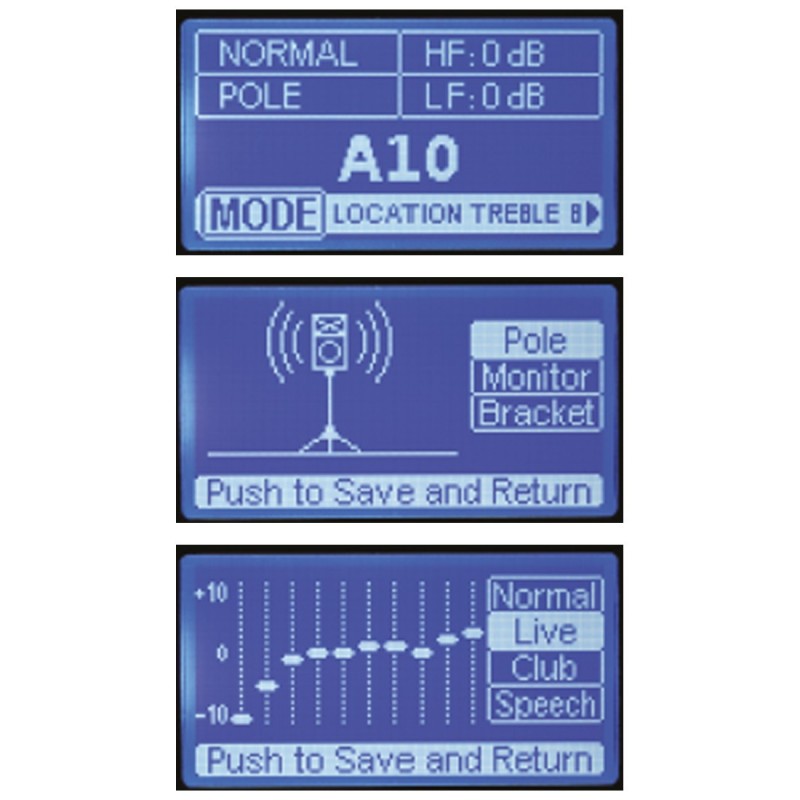

• DSP Features: LCD screen with EQ and multiple presets

• Driver Information: 10” Woofer w/2” Voice Coil. 1” HF Compression Driver

• Input /Output Connectors: Balanced female XLR/ ¼” combo jack, 2 x RCA (phono), Balanced XLR Output

• Enclosure: H-PP Moulded

• Grill: 1.2 mm steel• Handles: 1 handle on Top

• Fly Points: 2 Fly Points on Top, 1 Fly Point on the Back

• Pole Mounting: Dual position 0° , 7.5°

• Power Input: 120V/60Hz or 230V/50Hz

• Dimensions: (W x D x H) 12.2” x 11.8” x 20,9” (310 mm x 299 mm x 530 mm)

• Net Weight: 25 lbs. (11,3 kg)

Download Manual.pdf
