A18S

The Avante A18S, part of the Achromic Series from Avante Audio, is an active Subwooofer that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.

• 18-inch, active Subwoofer

• Frequency Range (-10db): 35Hz-150Hz

• Nominal Coverage: Omni-direction, Cardioid

• Output (Peak SPL @1M): 127dB

• Amplifier Power: 1600 W Dynamic, 500W RMS Class D

• Power Consumption: 600W

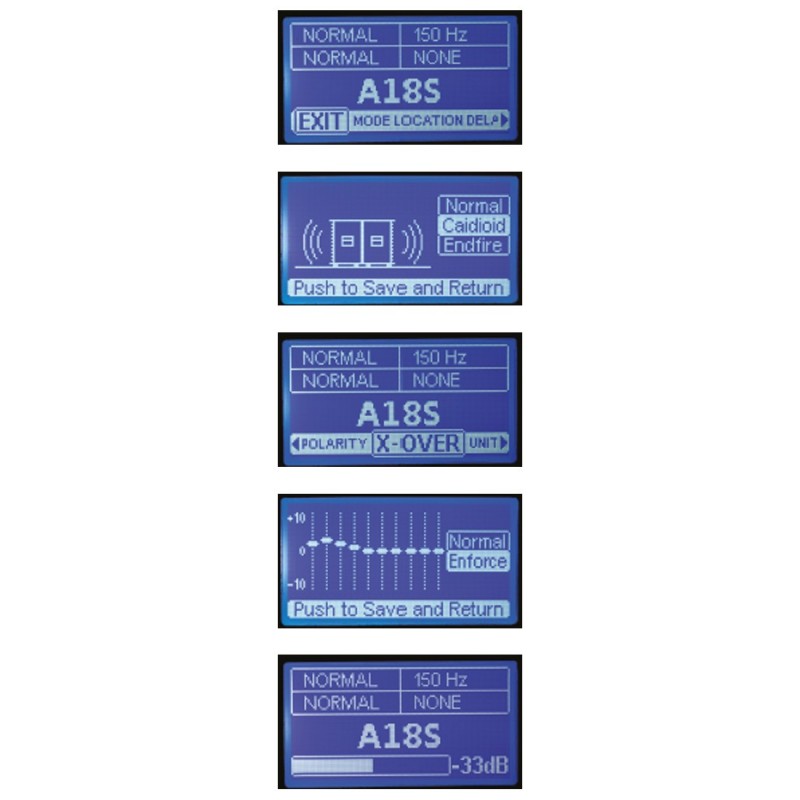

• DSP Features: LCD screen with EQ and multiple presets

• Driver Information: 18” Woofer w/3” Voice Coil.

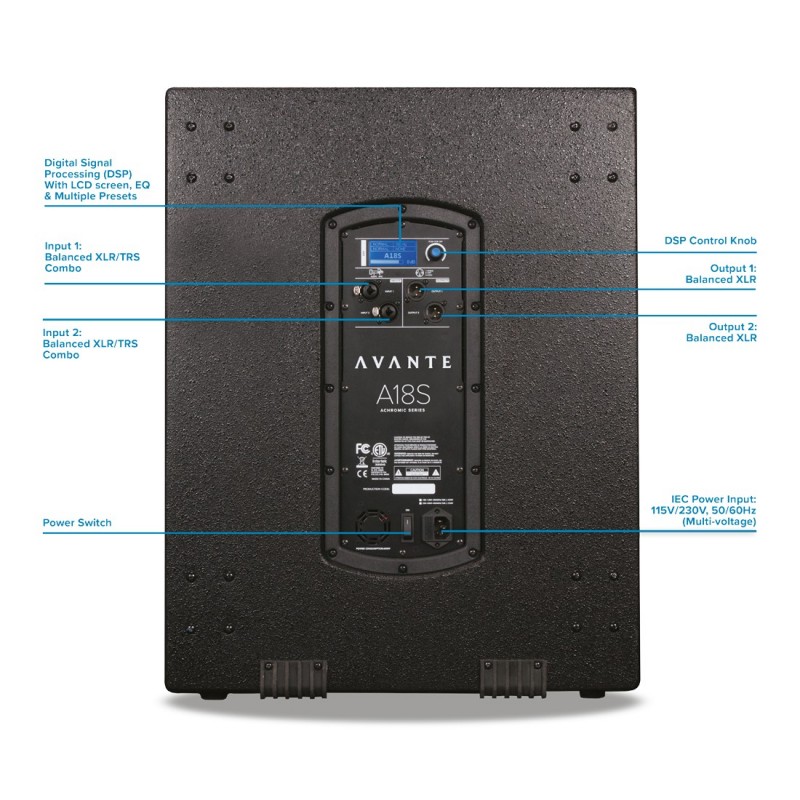

• Input /Output Connectors: 2 x Balanced female XLR/ ¼” combo jacks, 2 x XLR male balanced Ouputs

• Enclosure: 15mm Plywood

• Grill: 1.5 mm steel

• Handles: 1 handle on each side

• Fly Points: None

• Pole Mounting: Ground Stack

• Power Input: 120V/60Hz or 230V/50Hz

• Dimensions (W x D x H): 20.1” x 25.5” x 26.1” (510mm x 647mm x 662mm)

• Net Weight: 73 lbs. (33,1 kg)
