Mirage Q6 Pak

Description

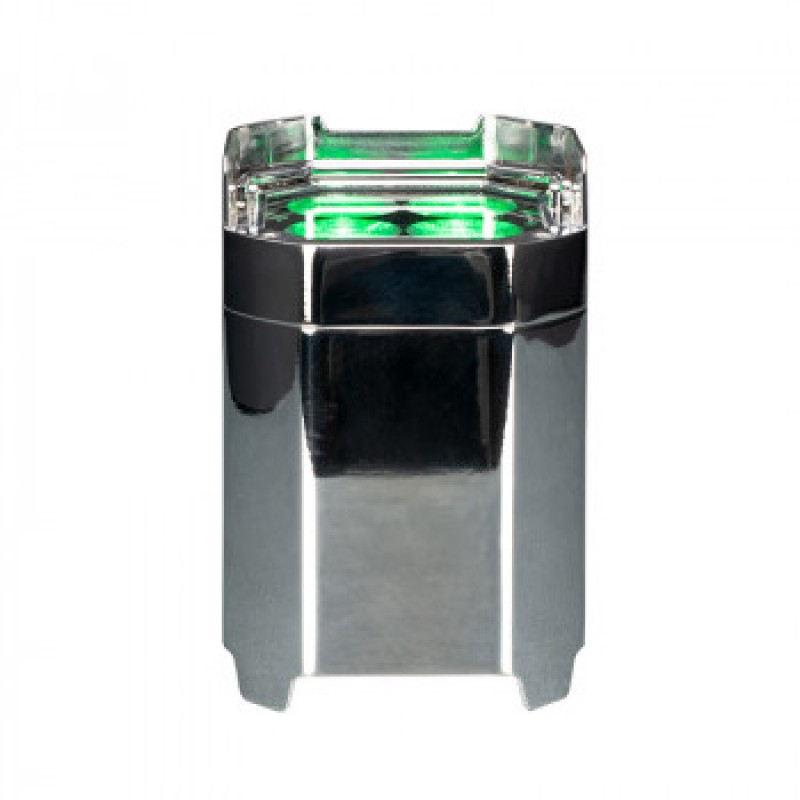

The ADJ Lighting Mirage Q6 PAK is an all-in-one event up lighting system with six IP65 rated, battery powered fixtures and a durable flight case with an on-board battery charging solution.

Each Mirage Q6 IP fixture is powered by four 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller, also with WiFLY EXR wireless DMX, up to 2,500 feet (700M) away.

Sold in a system of six portable LED battery powered fixtures inside a charging flight case.

FIXTURE SPECIFICATIONS

Source:

• 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)

• 50,000 Hour Average Life

• Lumen: 1185 Lumen Full On

Optics:

• 11-degree beam angle

• 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels

• Control protocol: WiFLY EXR Wireless DMX, UC-IR (Included)

• 5 Operation modes: RGBA Dimmer Mode, Auto Run Mode (13 programs, & 1 color/fade combo mode), Static Color mode and Wireless DMX Control

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves

• Run all night – No duty cycleColor:

• RGBA Color mixing

• 64 built-in Color Macro

• Metal housing with chrome finish

• IP65 Rated for temporary outdoor use

• Built-in kickstand to angle fixture when sitting on the floor

• Carrying handle

• Built-in alarm system with On/Off

• Battery charge indicator on each fixture

• Power Input: DC 17.3V

• Amperage Draw: 2A

• 40W Max Power Consumption (each unit)

• Battery Type: Fixed lithium battery

• Battery Energy: 162.8WH (Watt Hours)

• Battery Weight: 0.84 kg.

• Battery Voltage: 14.8V

• Battery Capacity: 11000mAh (Typical Capacity)

• Battery Charge Time: 7 Hours

• Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03

• Contact Charging system. 6x Charging bases and power supplies included in flight case

Dimensions & Weight:

• Length: 143mm

• Width: 143mm

• Height: 211mm

• Weight: 2.8kg.

Mirage Q6 PAK Includes:

• 6 MIRAGE Q6 IP Fixtures

• 1 MIRAGE Q6 FC Flight Case

• 6 MIRAGE Q6 IPCB Charging bases and power supplies

• 1 UC-IR Wireless Infrared Controller

• 1 IP65 Locking Power Cable

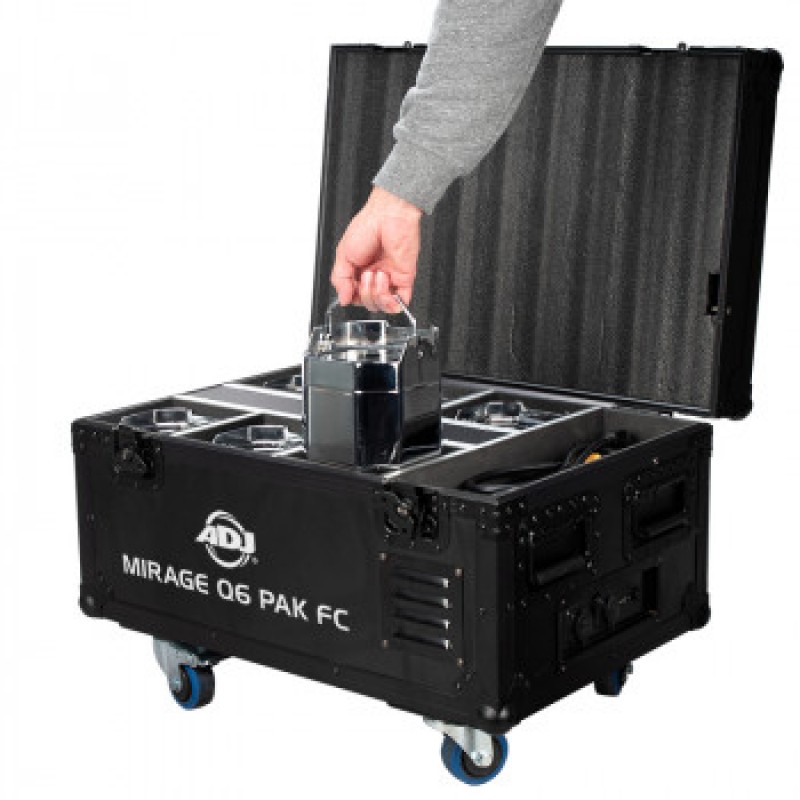

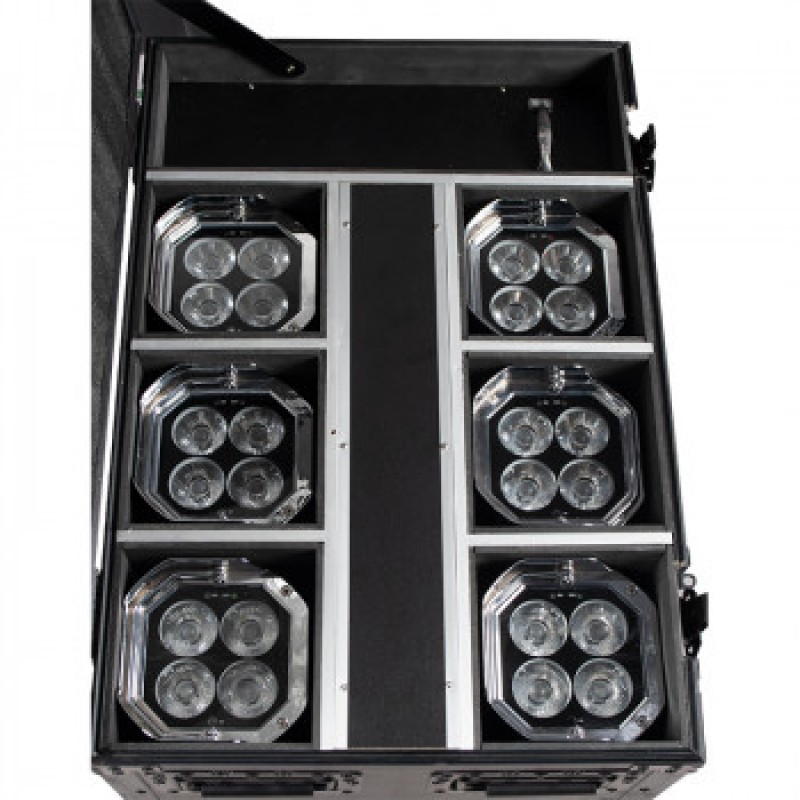

• Houses / Transports and Charges 6 MIRAGE Q6 IP™ fixtures

PAK Dimensions & Weight (loaded case with 6 fixtures):

• Length: 672mm

• Width: 461mm

• Height: 449mm

• Loaded Weight: 44.4 kg

• Power Input: AC100VAC~240VAC, 50/60Hz

• IP65 Power Locking Input and Output

• Max Power Consumption: 400 Watts

• Power Draw: 4A

• Charge status indicator

• -10°C to 45°C
