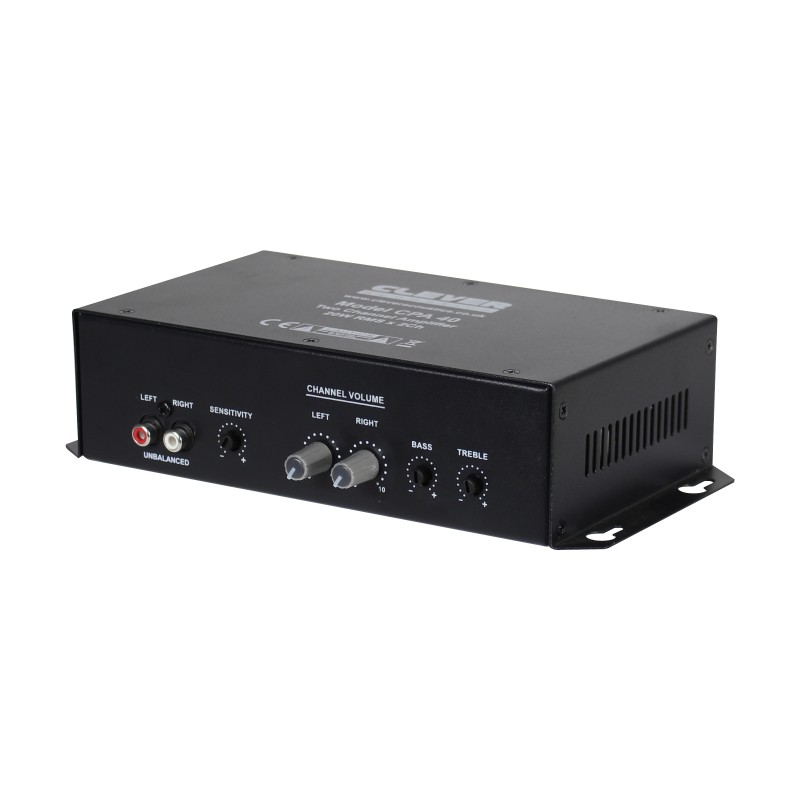

CPA 40 2 x 20W Compact Amplifier

Designed for installation into bars, shops and commercial spaces the CPA 40 from Clever Acoustics is a compact Class D amplifier ideal for driving ceiling loudspeakers or compact ABS enclosures. In addition to the amplifiers high efficiency, it also feat ures a power saving function where it will enter standby mode following more than 5 minutes without audio input.

Features

- Rugged steel chassis with wall/panel mount ears

- High efficiency design reduces heat generation and reduces power consumption

- Stereo left and right channel outputs

- Stereo RCA unbalanced line level inputs w ith sensitivity control

- Independent L/R volume controls

- Independent bass and treble controls

- Built-in intelligent limiter to eliminate the earth line noise when connected with laptop or MP3

- Automatic standby when no input signal is detected for 5 minutes

- Automatic power on when input signal is detected

- Switch on delay for added loudspeaker protection

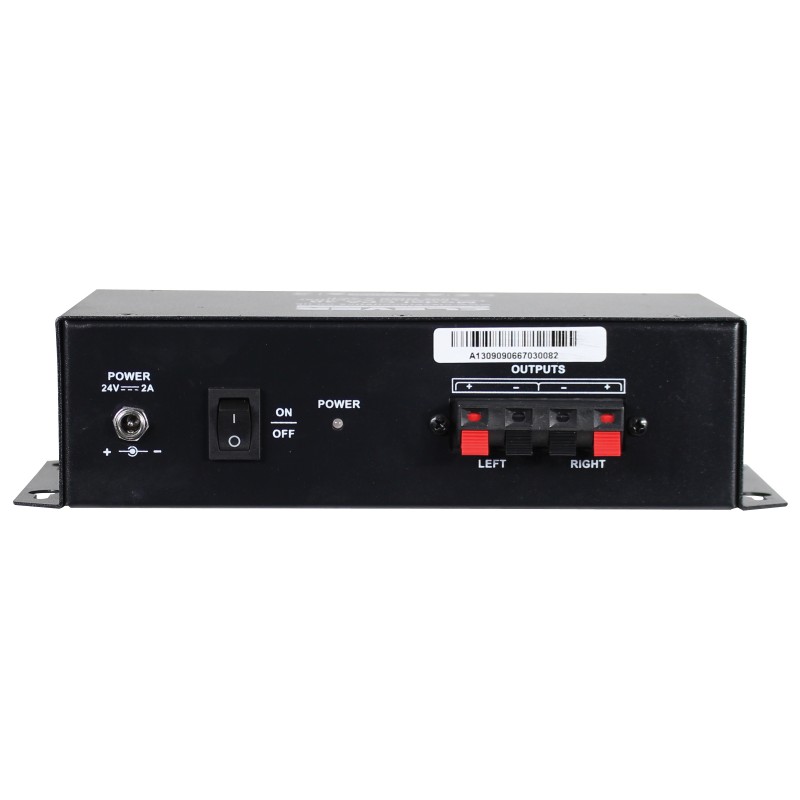

- Convenient push terminal loudspeaker outputs

- Overload, high temp and short-circuit protection

- Supplied with DC 24V power adapter

Specification

- Frequency response: 50Hz-18KHz

- Power consumption: 48W

- Power supply: 24V DC

- Dimensions: 56 x 230 x 115mm

- Weight: 1kg

Download Manual.pdf
