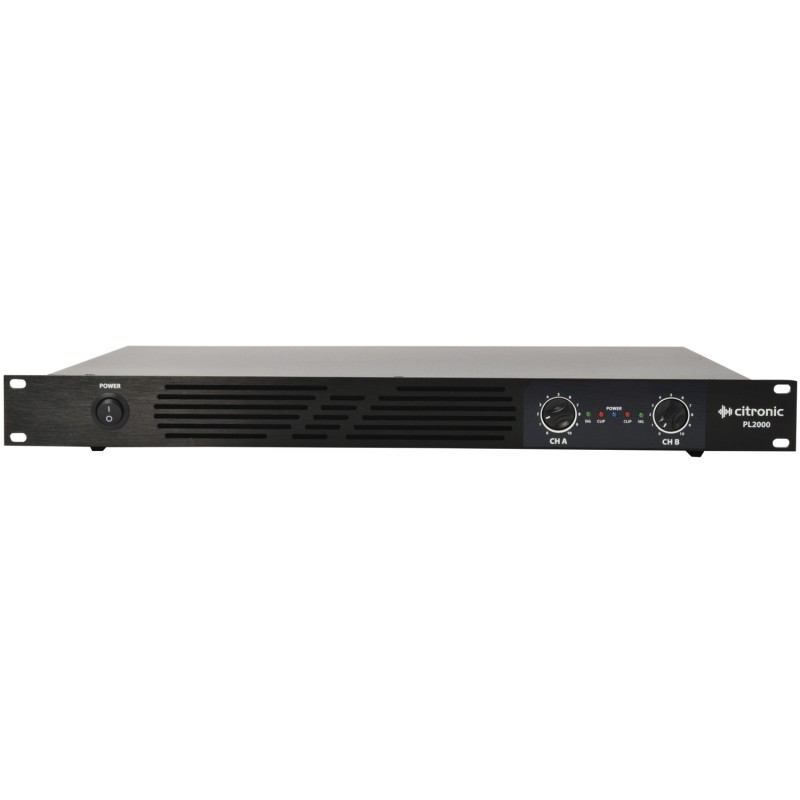

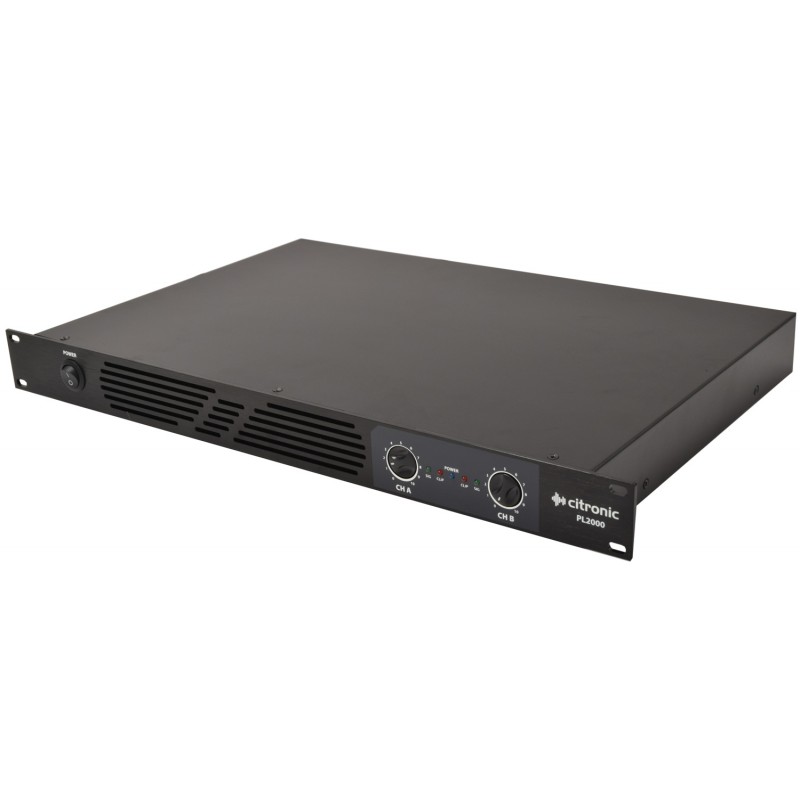

PL Series 1U Digital Amplifiers

Super compact and lightweight stereo power amplifiers in a 1U rack-mountable housing. Fully digital architecture provides high power output and efficiency with inbuilt protection circuitry. Signal inputs are balanced combo jack/XLR connectors and speaker outputs are provided as locking SPK or 4mm binding posts. Easy portability makes these amplifiers well-suited for mobile sound systems without compromising quality of the audio output.

Cutting edge class D architecture

Compact and lightweight

Fan cooling and internal protection circuitry

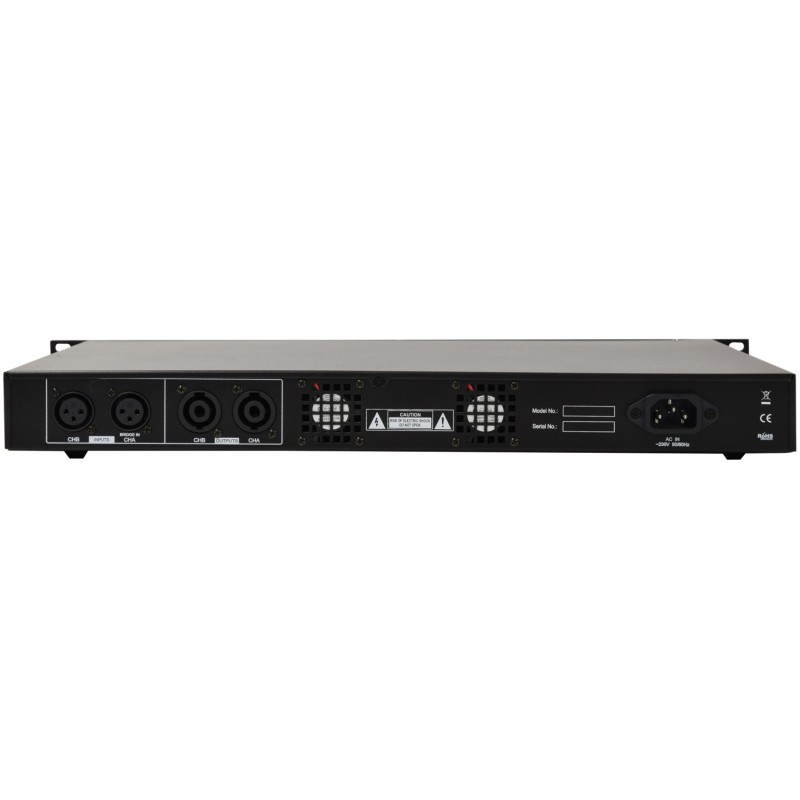

Output connections SPK (L+R) + 4mm binding posts (L+R)

Frequency response 20Hz - 20kHz (±0.5dB)

THD +N <0.05%

Damping factor 300

S/N ratio (A weighted) : line 100dB

Slew rate 20V/us

Input impedance 10k Ohms unbalanced, 20k Ohms balanced

Output circuit architecture Class D

Protection Temperature, short circuit, DC, overload

Indicators Power, signal, clip

Dimensions 482 x 180 x 44mm

Specification

Power Supply 230Vac, 50Hz (IEC)

Fuse T15AL (250V)

Output power : 4 Ohms 2 x 1000Wrms
