B-TWIG 12 PRO

2800 W ACTIVE COLUMN PA SYSTEM

Extra power and extra features for the ultimate B-Twig column system, able to provide 2800 W as well as providing users with professional yet easy-to-use features: enabled to connect another B-Twig 12 Pro system, Bluetooth or multiple I/O to connect all audio sources in seconds, a 4-channel on board mixer, customizable EQs, digital effects and rotatable column to provide your audience with the best sound performance.

All-in-one professional PA system for playback and live music

Mono or Stereo Mode

On-board 4 channel mixer,Multiple I/O combination with HI-Z Input

Stereo AUX IN

Bluetooth® connection

DFX Send Level / Return

Easy to use DSP with 4 preset EQ

DFX unit with 16 preset effects

90° left/right column rotation for wide sound coverage

Unaltered voice reproduction & powerful bass response

Compact, Easy to setup and Carry

B-TWIG series reach the next level with this extra powerful column PA system which easily provides all you need for a professional and completely customizable audio performance in any kind of application.

Perfect solution to set the dancefloor and your audience on fire with its 2800 W peak power, the complete system is set up and dismantled in seconds and is enabled to deliver impressive sound pressure levels up to 126 dB. Moreover, the system can be easily connected to another B-Twig 12 Pro to set the most powerful stereo system.

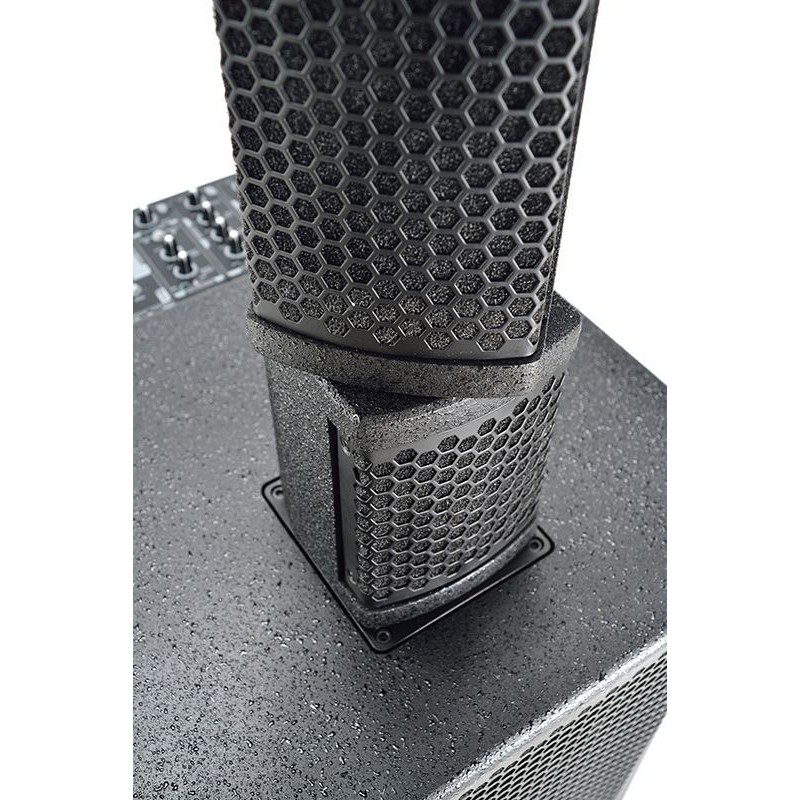

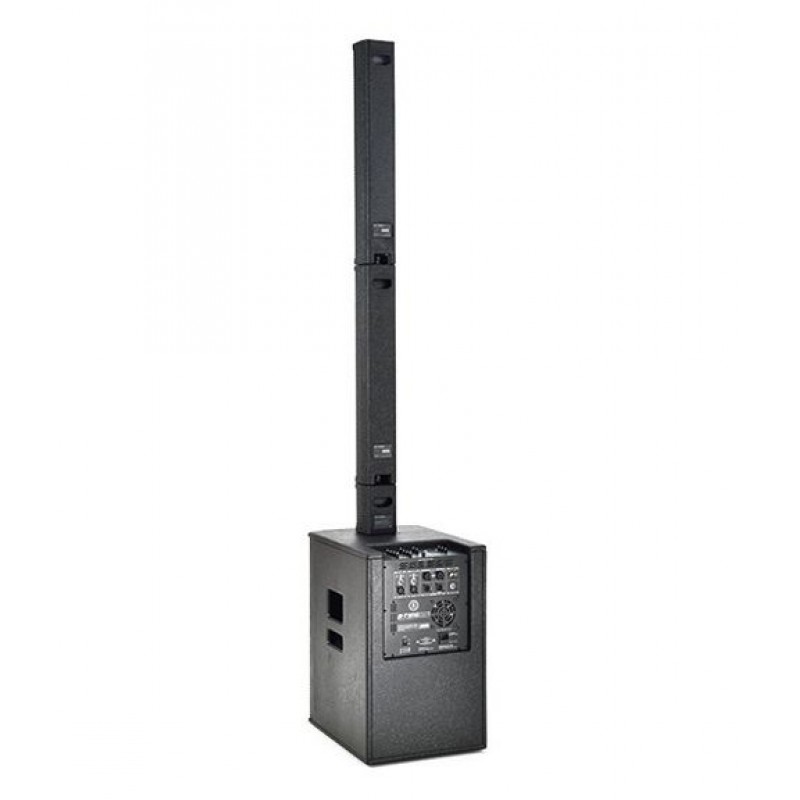

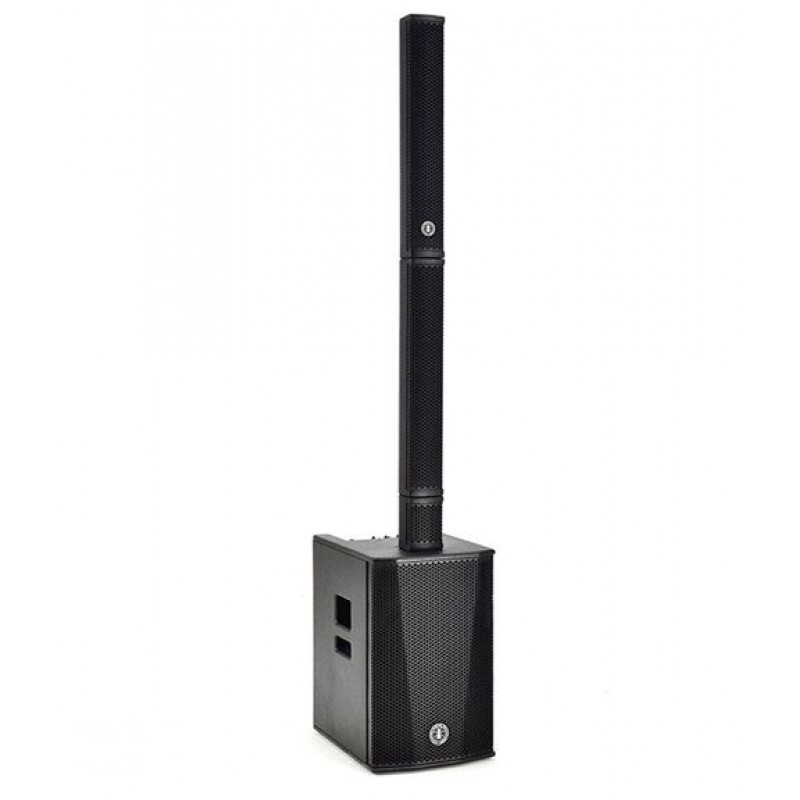

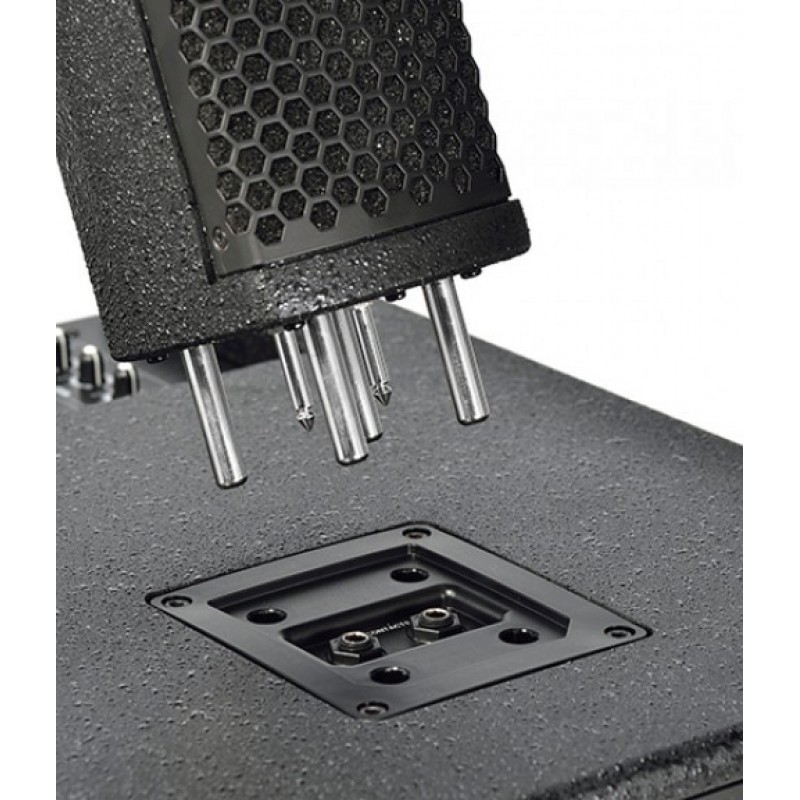

B-Twig 12 pro is comprised of an active subwoofer (equipped with a 12” woofer and a Class D amplifier) and 2 passive column speakers (each one equipped 6 x 3,5” HF components). Sub and tops can be easily connected thanks to the fast connection mechanism which also allows to rotate the tops up to 90° left or right ensuring the best coverage in any application.

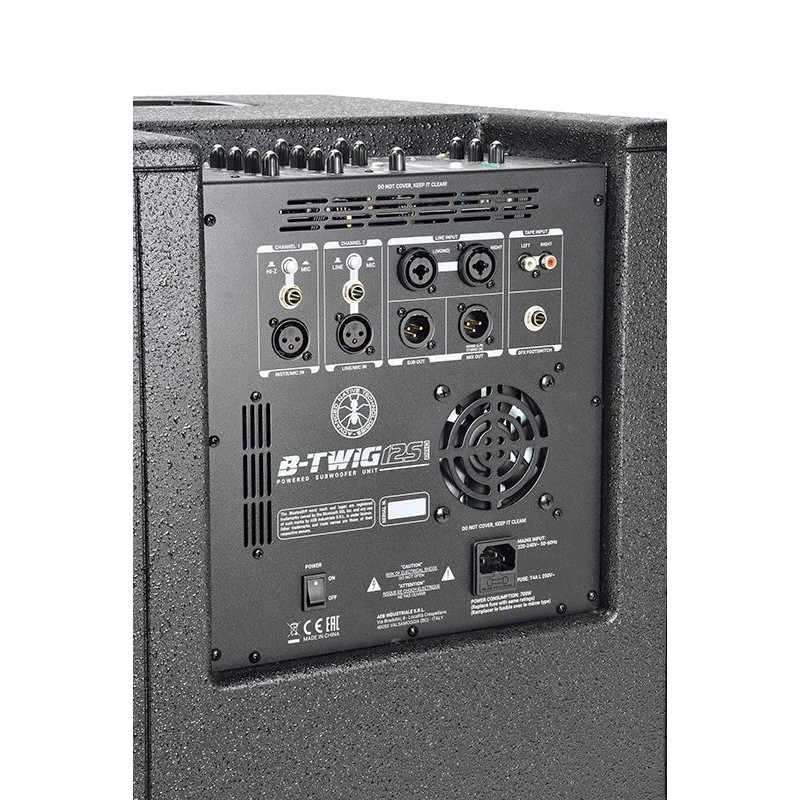

The system features 4 INPUT channels: CH 1 INSTR/MIC (6.35mm Jack or XLR-F); CH 2 Line/Mic ((6.35mm Jack or XLR-F); CH 3 Line/Tape In (2 Combo XLR-F/6.35 mm jack or RCA L/R socket); CH 4 Aux IN Stereo (3.5mm mini-jack) or Bluetooth® sync to connect any smartphone or tablet easily.

Outputs comprises a SUB XLR-M out to send the signal to another subwoofer and MIX XLR-M Out to address the MAIN MIX to another B-TWIG 12 PRO system in Mono or Stereo Mode.

The DFX unit can be set and activated from the onboard control panel or smoothly activated or bypass through foot switch input.

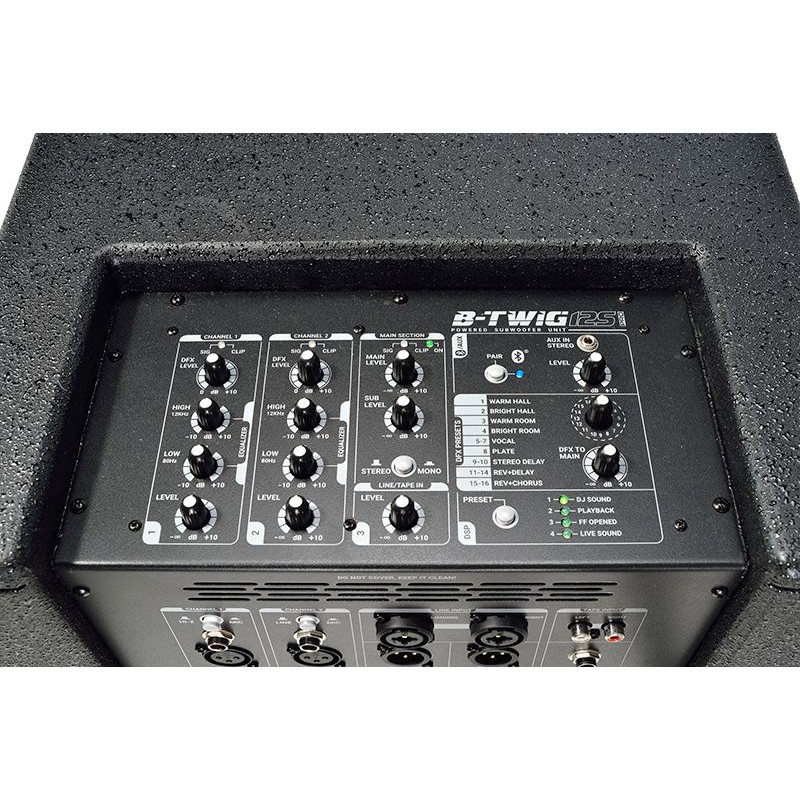

Controls features separate levels for each channel as well as DFX send/return levels and separate 2-bands EQ (HIGH/LOW) to get the most personal sound for every performance. Moreover, user can easily choose among 4 sound presets: DJ SOUND - PLAYBACK - FF OPENED - LIVE SOUND

TECHNICAL DATA SHEETS
System type    Active column system

Subwoofer (B-TWIG 12S PRO)    1 x 12” Custom ferrite speaker - 2.5” VC

Array speaker (B-TWIG 12CS PRO)    12 x 3.5” Custom speakers - 1” VC

Average dispersion    Horizontal 120°

Frequency response    45Hz - 20kHz

Max SPL    126 dB

Peak Power    2800 W

Crossover    24dB/Oct @ 200Hz

I/O connectors

CH1 & CH2: 2 x XLR-F + 2 x 6,35mm (1/4”) jack

CH 3 LINE IN: 2 x combo L/R

TAPE IN: RCA L/R

AUX IN: 1 x 3.5mm mini-jack

SUB OUT/MIX OUT: 2 x XLR-M

DFX FOOTWSWITCH: 1 x 6,35mm (1/4”) jack

Housing    12mm plywood

Dimensions B-Twig 12S PRO (W x H x D)    370 x 583 x 500 mm

Weight B-Twig 12S PRO    20,2 kg

Dimensions B-Twig 12CS PRO (W x H x D)    105 x 680 x 107mm

Weight B-Twig 12CS PRO    5,1 kg

Download Manual.pdf
