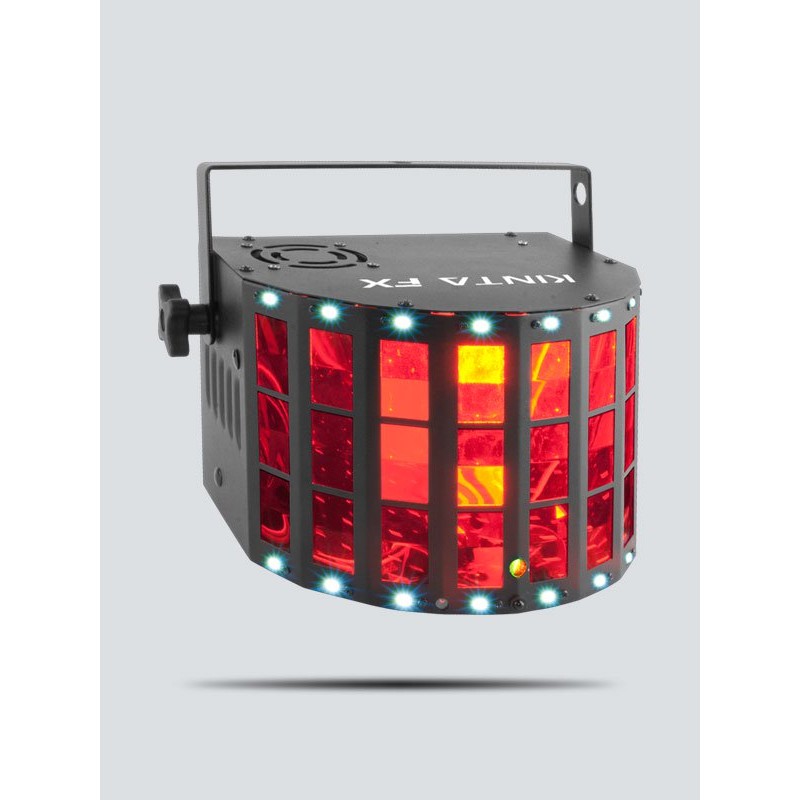

Kinta FX

Kinta FX combines an LED derby effect, laser and SMD strobe in one compact fixture. These effects can be coordinated to create a variety of exciting looks that feature multicolored derby beams, dynamic strobes and chases plus hundreds of sharp red and green laser beams. Control this versatile fixture easily via DMX, master/slave, optional IRC-6 remote or its digital display. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-30 VIP Gear Bag.

Compact multi-effect with a Kinta, Laser and SMD Strobe

LED Kinta effect projects countless razor sharp multicolor beams

SMD strobes produce eye-catching strobe effects and chases

A red and green laser that casts hundreds of beams

Master/Slave with other Mini Kinta FXs for a coordinated show

Easily control the unit from DMX, Master/Slave, IRC-6 or the digital display

Save time running cables and extension cords by power linking multiple units

DMX Channels: 2 or 9

DMX Connectors: 3-pin XLR

Light Source: (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy(Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy(Laser): 650 nm/100 mW (Red) laser diode, 532 nm/30 mW (Green) laser diode

Strobe Rate: 0 to 20 Hz

Power Linking: 16 units @ 120 V; 31 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 32 W, 0.5 A @ 120 V, 60 Hz31 W, 0.3 A @ 230 V, 50 Hz

Weight: 3.8 lb (1.7 kg)

Size: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)

Optional Controllers: IRC-6

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Download Manual.pdf
