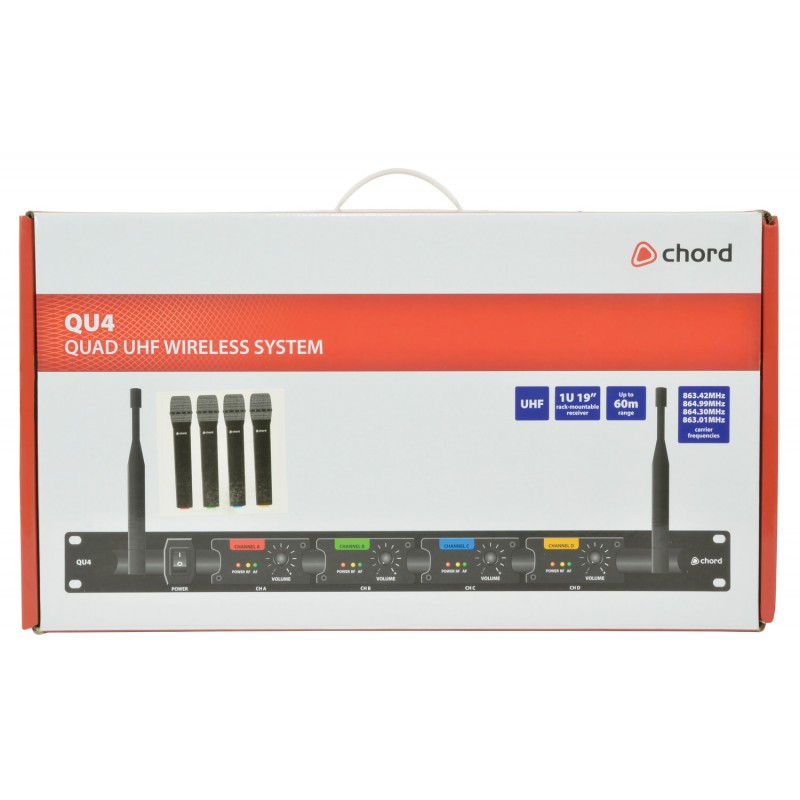

QU4 QUAD UHF WIRELESS SYSTEM
A wireless system with 4 independent UHF channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Suitable for vocal groups, theatres and presentations.
Individual or mixed outputs
Twin front-mounting antennas
Supplied with 4 colour coded transmitters
19" rack-mountable (1U)
Technical Specification
Power supply 12-18Vdc 800mA adaptor (supplied)Batteries 8 x AA (included)
Carrier frequencies Red 863.01 ,Yellow 863.42, Green 864.30, Blue 864.99MHz
Stability 10PPMS/N ratio>105dB
THD <0.5% @ 1kHz
Image rejection 85dB typical
Range 60m (max)Output impedance 2.2k Ohms
Output level Balanced: 0-400mv, unbalanced: 0-200mv
Connectors DC in, 4 x XLRM, 6.3mm jack
Dimensions : receiver 483 x 44 x 225mm
Weight : receiver 3.8kg
