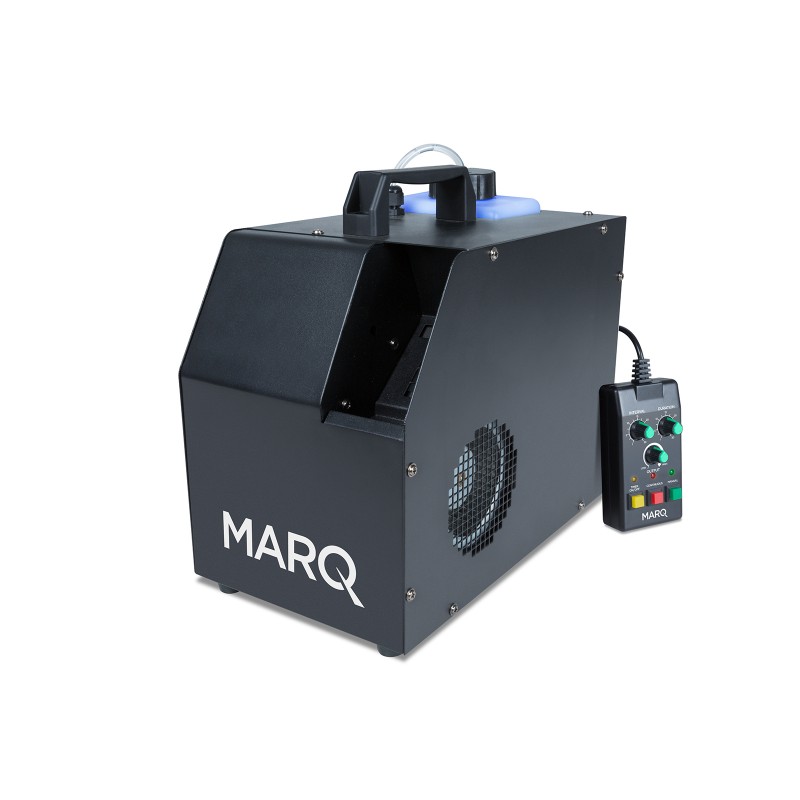

Haze 800 DMX

The Haze 800 DMX delivers haze effects custom-tailored to your exact requirements. DMX functions give you advanced programming options and complete control over every aspect of the unit’s performance. You can select from 1–100% fan speed or haze output and the included wired remote ensures simple operation.

800W hazerSmall footprintUp to 4 hours run time on a single tankDMX for advanced programing and variable controlIncluded wired remote with output intensity and interval1-100% selectable output on fan and/or haze

Specification

DMX Channels: 2

DMX Connectors: 3-pin XLR

Tank Capacity: 1.2L

Included Controllers: yes

Controller Length: 3M

Heat-up Time: 2 min

Output: 72m³/min

Fluid Consumption: 2-4.5ml/min

Input Voltage Available in: 120 VAC, 60 Hz or 230 VAC, 50 Hz

Power and Current: 800W 6.6A @ 120V, 60Hz

Power and Current: 800W 3.4A @ 230V, 50Hz

Weight: 6.6kg total machine & remote (remote: 0.25kg)

Unit Size: 311 × 182 × 278mm; 12.2 × 7.2 × 10.9in; 1.02 × 0.60 × 0.91ft

Package Size: 390 × 260 × 350mm; 15.4 × 10.2 × 13.8in; 1.28 × 0.85 × 1.15ft

Fuse: 250v/5A

Approvals: CE, FCC

Download Manual.pdf
