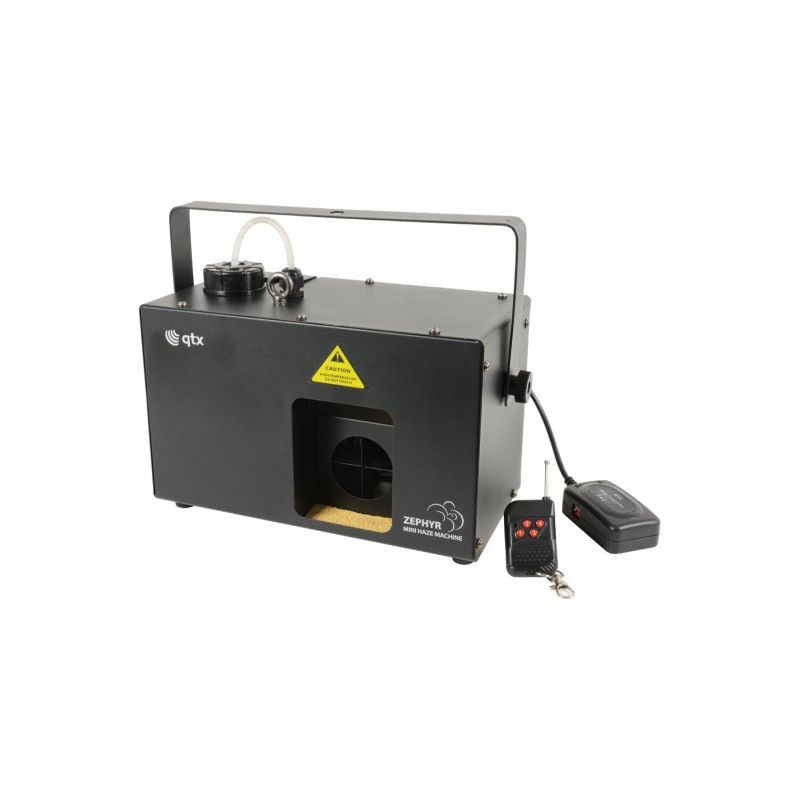

Zephyr Haze Machine 300W

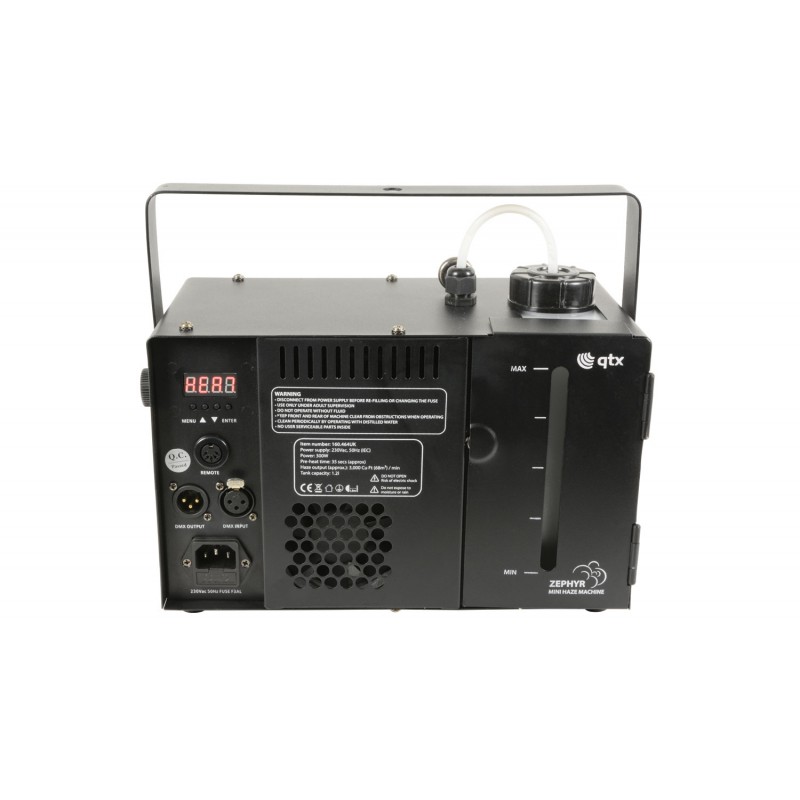

Digitally controlled haze machine with a sturdy metal housing for medium sized venues. Haze output can be set via the rear control panel and controlled from the included keyfob-style RF wireless remote or by DMX signal. A hinged door at the rear allows the fluid bottle to be removed for easy refilling and a slot window to show the fluid level. Designed to offer professional level haze effects in a compact format for easy installation and portability.

Compact housing with minimal footprint

Digitally controlled output rate

Removable fluid tank

Supplied with wireless remote control

DMX512 compatible

Power supply 230Vac, 50Hz (IEC)

Power 300W

Tank capacity 1.2 litre

Haze output (approx.) 3,000 CuFt (68m³) per minute

Reheat time 35 seconds (min.)

Controls Output (0-255), Fan speed (0-255)

Fuse F3AL 250V

Remote control frequency 433MHz

DMX channels 2 (output & fan)

DMX connection 3-pin XLR in & out

Dimensions 253 x 336 x 155mm

Weight 3.56kg

Remote control RF keyfob & receiver (5-pin DIN)

Zephyr 300W haze machine

RF remote receiver

RF keyfob transmitter

IEC power lead(s)

Download Manual.pdf
