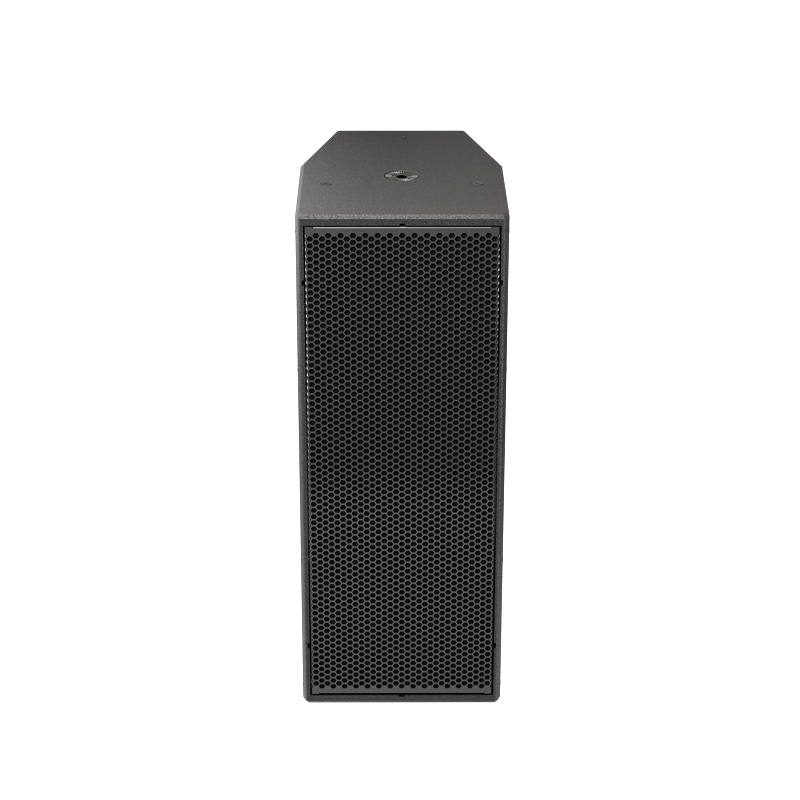

IS210T

MAX SPL 133 dB

FREQUENCY RESPONSE [-6dB]: 60 Hz - 17,800 Hz

HF: 1x 1.4" (exit), 2.4" v.c.LF: 2x 10", 2.5" v.c.

IP55 CERTIFIED

ROTATABLE HORN

WEIGHT: 28.7 Kg (63 lbs)

Overview

Combining excellent acoustic performance with the versatility guaranteed by dedicated accessories for flyable or pole configurations, IS210T is a solution designed for sound reinforcement in medium and large environments such as arenas, performing arts center, houses of worship, multifunctional venues, and clubs.

The symmetrical configuration with two 10'' woofers makes the top performing both in indoor and outdoor acoustic contexts; the IP55 certification ensures high resistance to different weather conditions and increase the system durability. IS210T is available in white and black, with the possibility of customizing the color finish of the white version by yourself.

Speaker Type        2-way Passive Full range Speaker

ACOUSTICAL DATA

RMS Power        400W (LF: 300W | HF: 100W)

Peak Power        1600W (LF: 1200W | HF: 400W)

Usable bandwidth [-10 dB]        56 Hz - 20,000 Hz

Frequency Response [-6 dB]        60 Hz - 17,800 Hz

Impedance        8 Ohm

Max SPL        133 dB

HF        1x 1.4" (exit), 2.4" v.c.LF2x 10", 2.5" v.c.

Dispersion        90x40° [rotatable horn]

X-Over Frequency        840 Hz (internal X-Over)

INPUT

Connections        Screw terminal block (LF+ | LF- | HF+ | HF-)

MECHANICS

Housing        Multiplex plywood - Polyurea painting

Rigging points        flyable with bracket

IP rating        IP 55

Width        300 mm (11.81 in)

Height        780 mm (30.71 in)

Depth        430 mm (16.93 in)

Weight        28.7 Kg (63 lbs)
