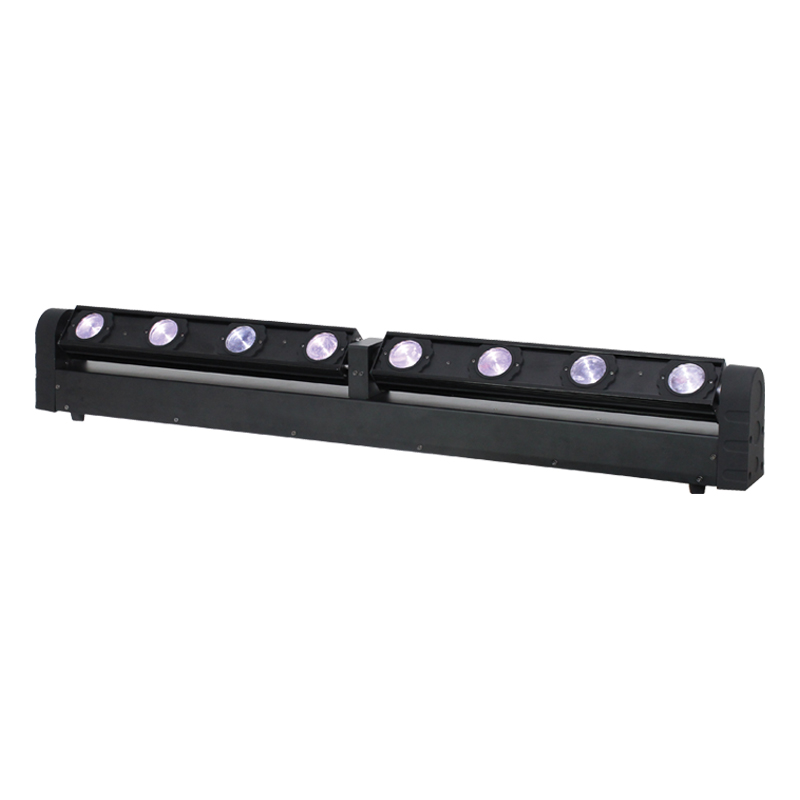

Vector Beam 9W

The Vector Beam 9W is a dynamic multi-beam batten effect featuring two sweeping LED bars, each loaded with four individually controllable narrow beams. Dispensing eight intense and sharp long-throw beams the Vector Beam cuts through the air with ease. The four button menu system allows control of master/slave functions, and the fixture can be also be operated in sound active and DMX modes.

Beam angle: 3°Individually controllable LEDs.

Features

- 8 x 9W cool white LEDs

- Beam angle: 3°

- Individually controllable LEDs

- 6.2kHz refresh rate

- DMX channels: 1/12 or 16 selectable

- Sound active, auto and master slave modes plus built in programs

- Tilt: 180°- Tilt auto correction

- 0-100% dimmingand variable strobe

- Quick release omega clamps included

- 4 push button menu with LCD display

- PowerCON input/output

- 3-Pin XLR input/output

- 5-Pin XLR input/output

- Convection cooled LEDs

Specification

- Power consumption: 93W

- Power supply: 100~240V, 50/60Hz

- Dimensions: 156 x 1066 x 80mm

- Weight: 8.7kg
