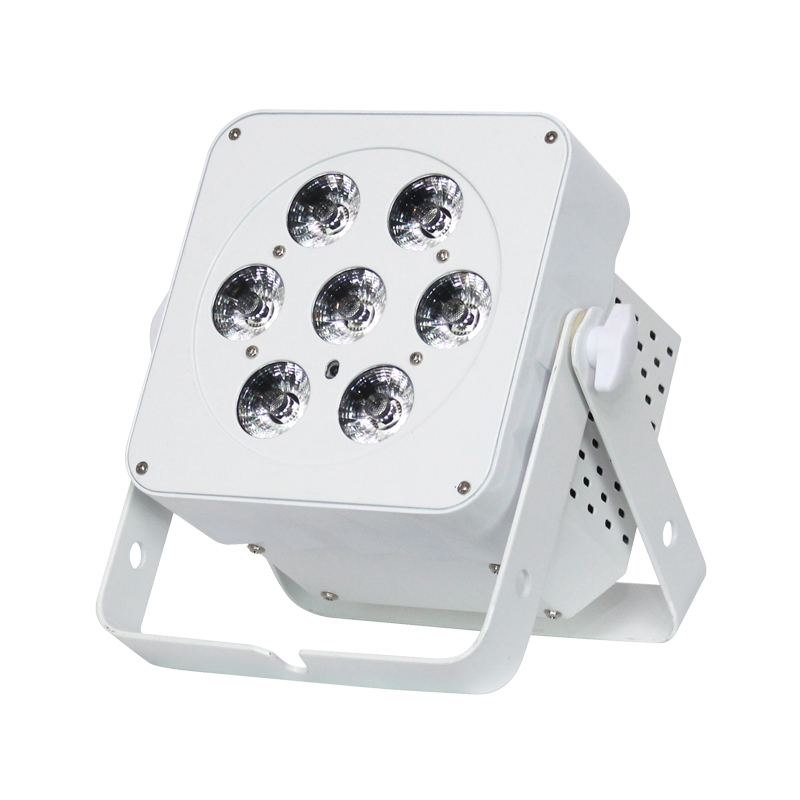

Slimline 7HEX6 RGBWAUV (White Housing)

Housing 7 x 6W six-colour LEDs, the Slimline 7HEX6 gives smooth colour mixing from rich saturated hues to subtle pastel shades. These units have rugged, all metal housing and measure only 124mm in depth for easy transportation and installation. They are also convection cooled for silent operation and feature a 30° beam angle. The 4 push button LED menu or optional IR remote allow easy access to the functions including DMX, master/slave, sound active and stand alone.

Features

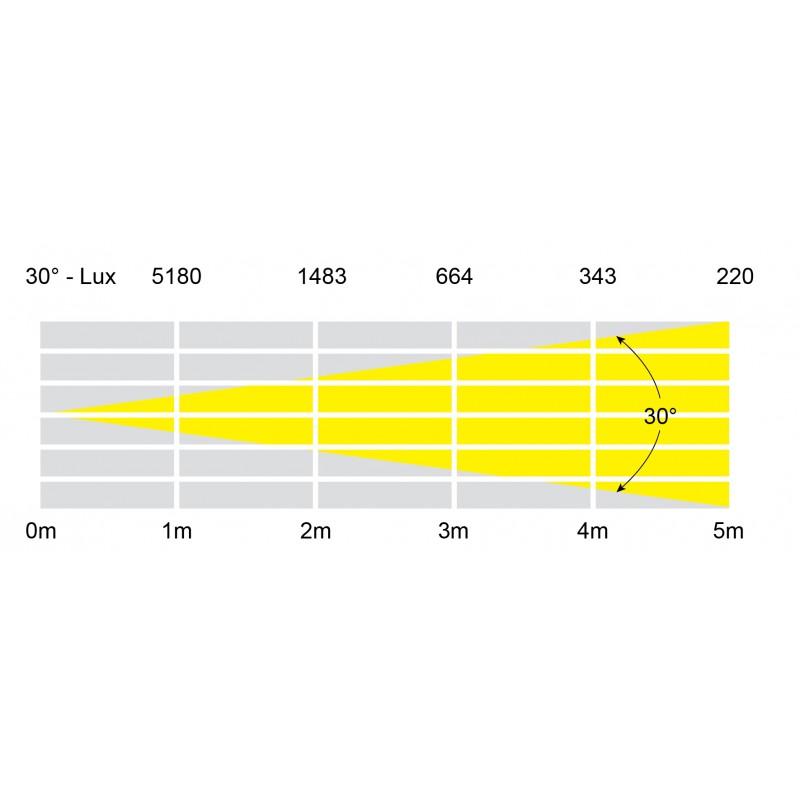

- 7 x 6W six-colour LEDs (RGBWAUV)- Beam angle: 30° (field angle: 40°)

- 1,483 Lux @ 2m

- 400Hz refresh rate

- DMX channels: 2/3/3/4/4/5/6 or 9 selectable

- Static colour, colour change, colour fade, auto, sound active and master/slave modes

- 0-100% dimming and variable strobe

- Bracket allows for multiple rigging or floor standing applications

- Rubber feet allow the panel to sit flat on the floor for uplighting

- 4 push button menu with LED display

- Side entry XLR and power connections

- IEC power input/output

- 3-Pin XLR input/output

- Convection cooled

- Optional IR remote (LEDJ90F)

Specification

- Power consumption: 50W

- Power supply: 100~240V, 50/60Hz

- Dimensions: 212 x 222 x 124mm

- Weight: 2.0kg
