Spectra QX40 Pixel Exterior Fixture

Equipped with 40 x 10W RGBW LEDs, the QX40 is suitable for illuminating event spaces, stages or facades, while the zone control allows lighting designers to create stunning effects. The unit utilises quad-colour LED technology to produce a wide colour spectrum from rich, primary colours through to subtle pastel hues. Designed for rental and events, the QX40 features quick release omega brackets, powerCON TRUE1 connectors for power input/output and also features both wired and wireless DMX by W-DMX Sweden. The slim profile of the fixture is ideally suited for loading into road trunks holding multiple units. A range of optional accessories including beam shaping lenses, snoots and barn doors further widen its applications.

Features
- 40 x 10W quad-colour LEDs (RGBW)

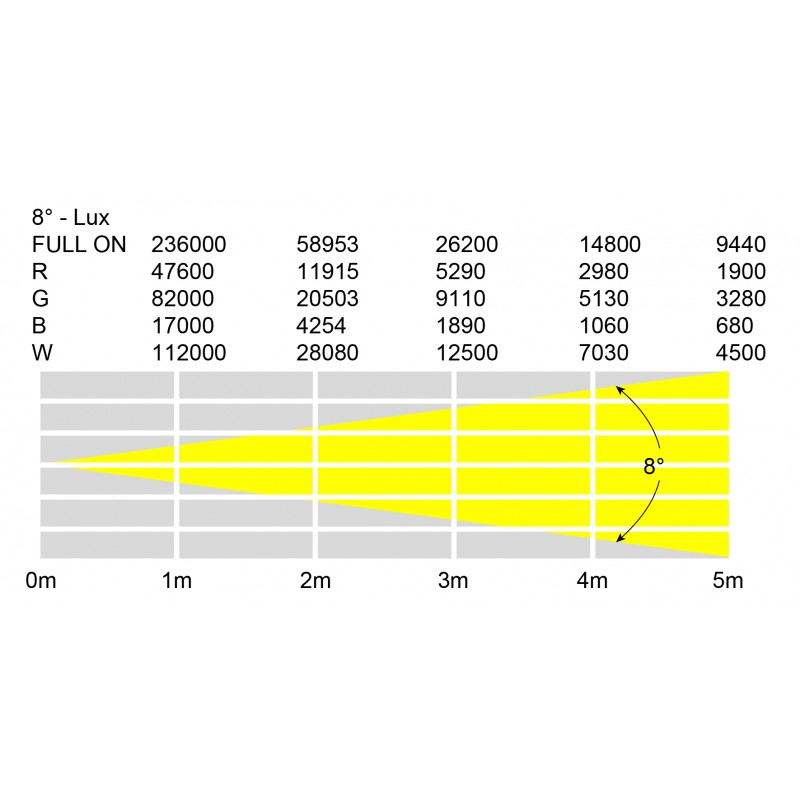

- Beam angle: 8°

- 3kHz refresh rate

- Pixel zone mapping

- Wireless DMX control by W-DMX Sweden

- DMX channels: 1/3/4/6/9/20 or 25 selectable

- RDM (Remote Device Management)

- Static colour, colour change and colour fade modes

- Master/slave mode when cabled

- 0 - 100% dimming and variable strobe

- 4 dimming curves: Linear, square law, inverse square law and S-curve

- Supplied with installation bracket and quick release omega clamps

- 4 button menu with OLED display

- PowerCON TRUE1 input/output

- IP rated 5-Pin XLR input/output

- Fan cooled

Specification

- Power consumption: 420W

- Power supply: 100~240V, 50/60Hz

- IP rating: IP65

- Dimensions: 332 x 334 x 141mm

- Weight: 11.5kg

Download Manual.pdf
