SD 1 Controller

The SD-1 is a dedicated controller for the Display Panel, Display Qube and Display Floor fixtures. Features include 82 programs with auto run and 18 speed settings, master/slave mode for multiple fixture linking, sound active with sensitivity adjustment, brightness and DMX modes.

Features

- Auto shows, sound active and master/slave modes

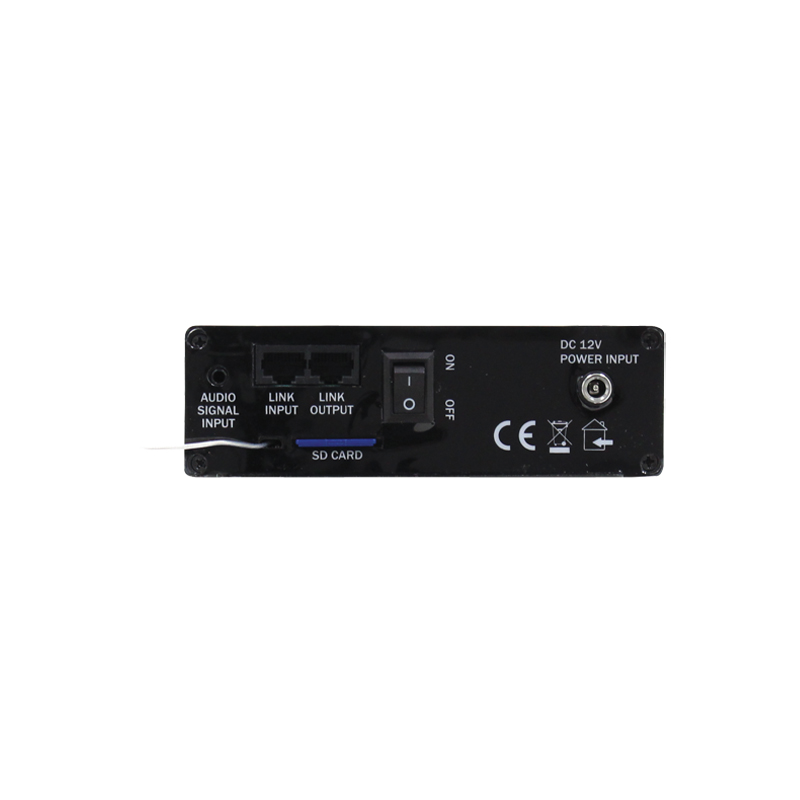

- 4 push button menu with LCD display

- DC 12V power input

- 3-Pin XLR input/output trailing connections

- RJ45 link input/output

- 8 RJ45 zone outputs

- 3.5mm jack audio source input

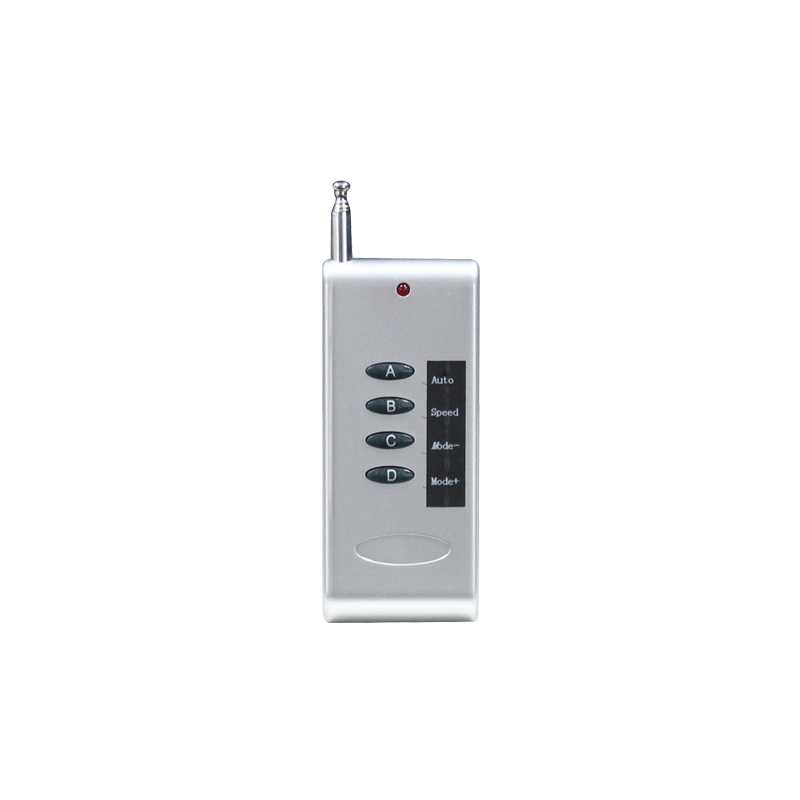

- Wireless remote included

Specification

- Power supply: DC 12V

- Controller dimensions: 45 x 220 x 143mm

- Remote dimensions: 103 x 38 x 12mm

- Controller weight: 1kg

- Remote weight: 0.1kg

Download Manual.pdf
