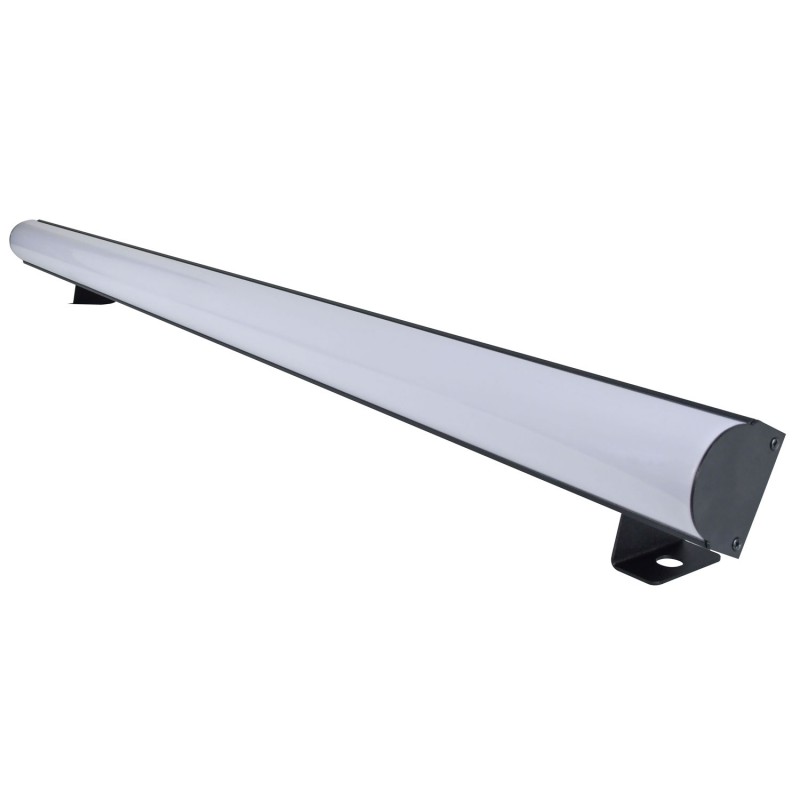

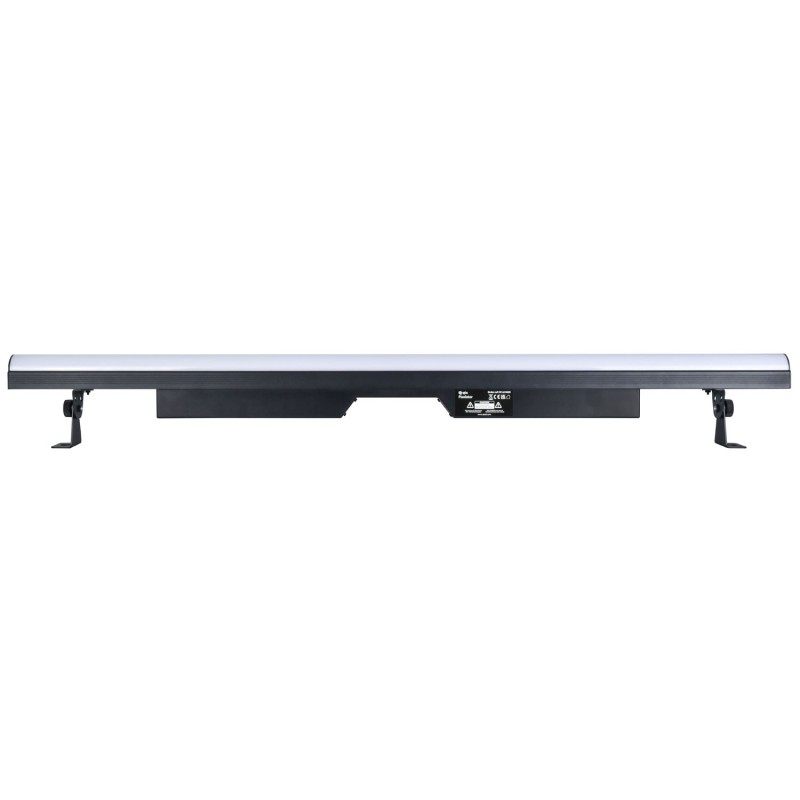

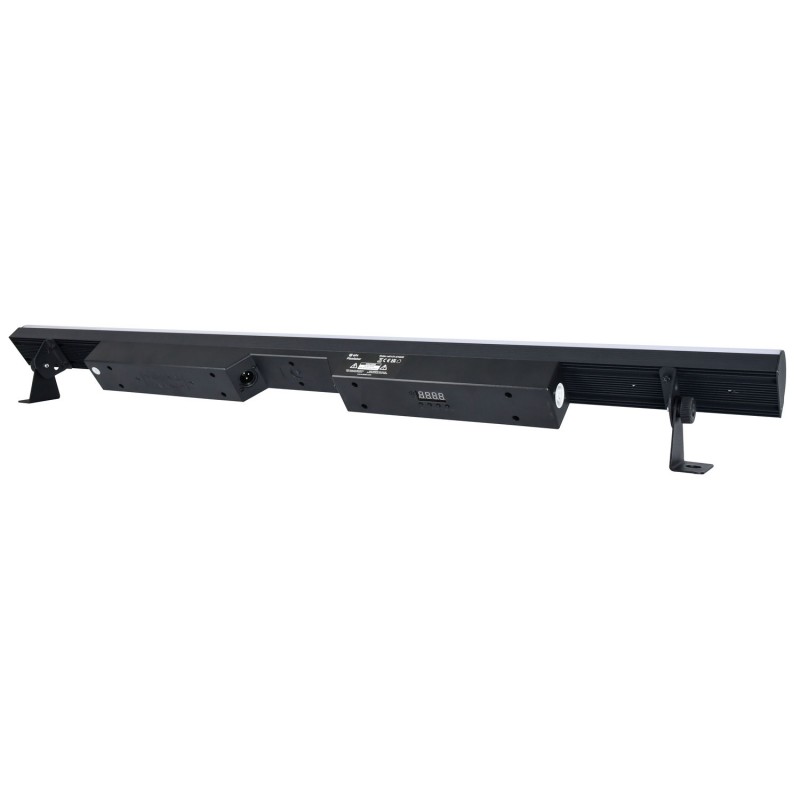

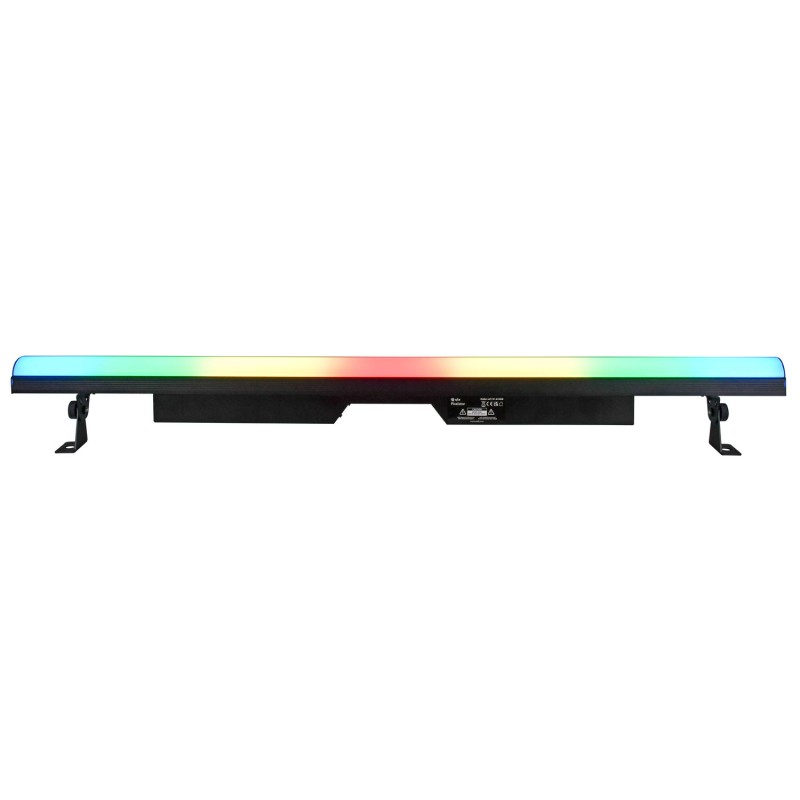

Pixelator: 144pcs Pixel LED Effects Bar

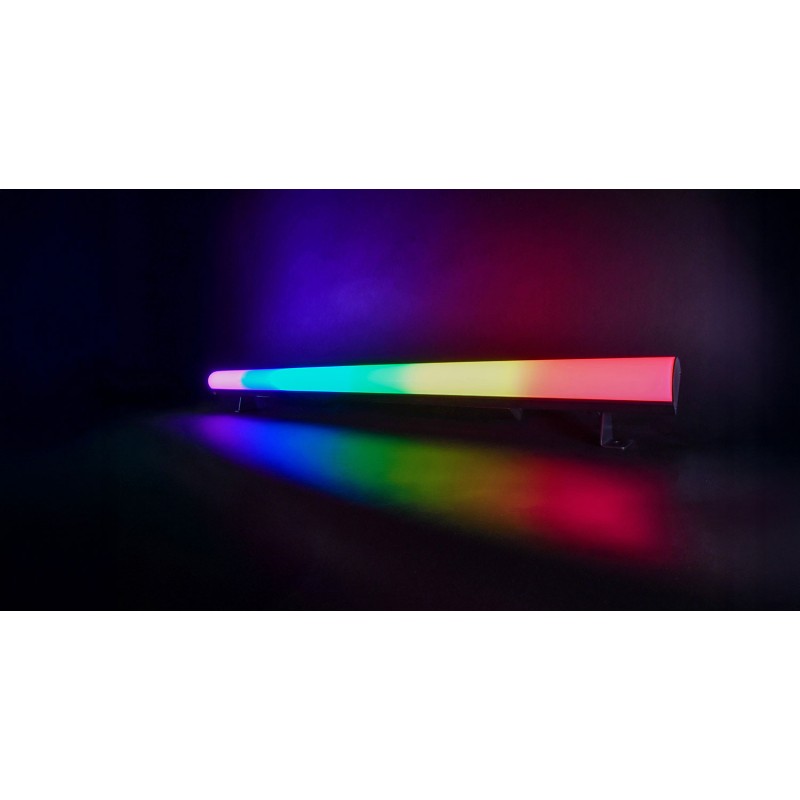

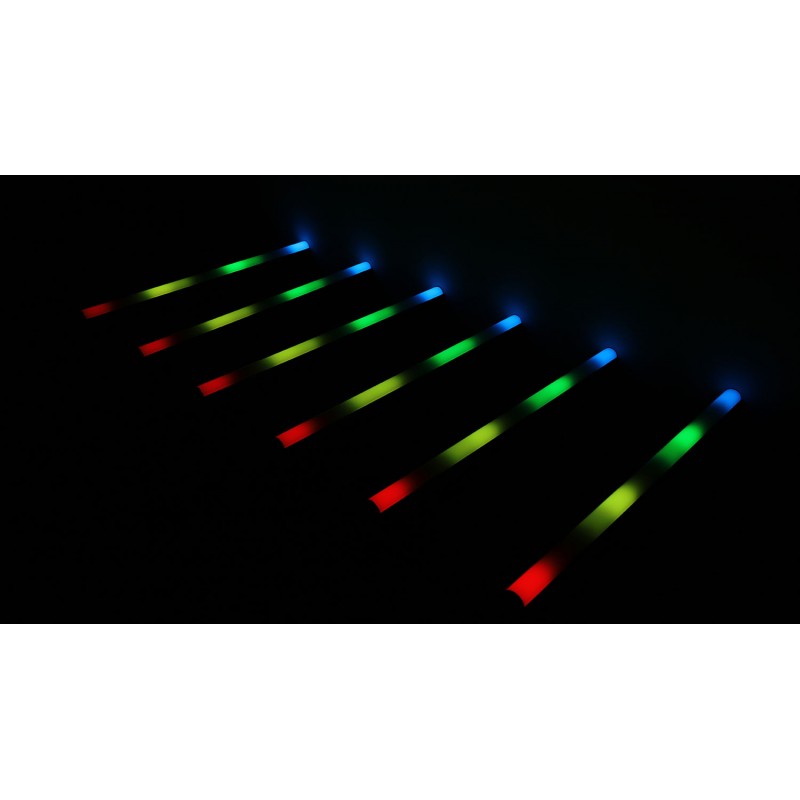

LED effects bar fitted with 144 RGB SMD's to provide a wide range of bright and colourful patterns and effects. Various automatic shows and settings can be run directly from the unit, or using sound to light. Alternatively the bar can be operated remotely by DMX in various channel modes and connected to multiple units if a larger effect is needed. Supplied with twist and lock power lead and tilt-adjustable brackets for hanging, truss mounting or free-standing.

12 independent control zones

Automatic, show and sound modes that can be tailored to your requirements using additional speed, sensitivity and strobe settings

Connect to multiple units and control using DMX for a wider effect3, 5, 8, 36 or 40 channel DMX modes

Twist and lock power connections for a more professional feel

Supplied with dual mounting brackets for hanging, truss mounting or free-standing

Power consumption    60W

LED : type    144Pcs SMD 5050 3IN1 RGB LEDs

Beam angle    90°

Modes    Auto, Show, Sound, Master/Slave, DMX

DMX channels    3, 5, 8, 36 or 40CH

Connections    Power in/out (twist and lock), DMX in/out (3pin XLR)

Dimensions    60 x 80 x 1010mm

Weight1.54kg

Pixelator main unit

Twist and lock UK mains lead (2m)

Mounting brackets and thumbscrews

User guide
