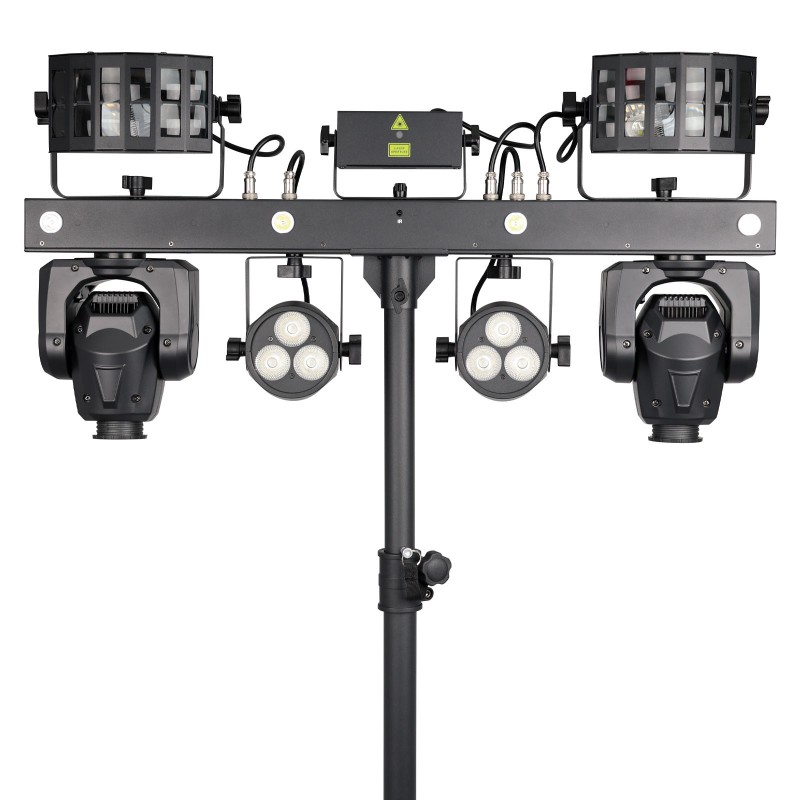

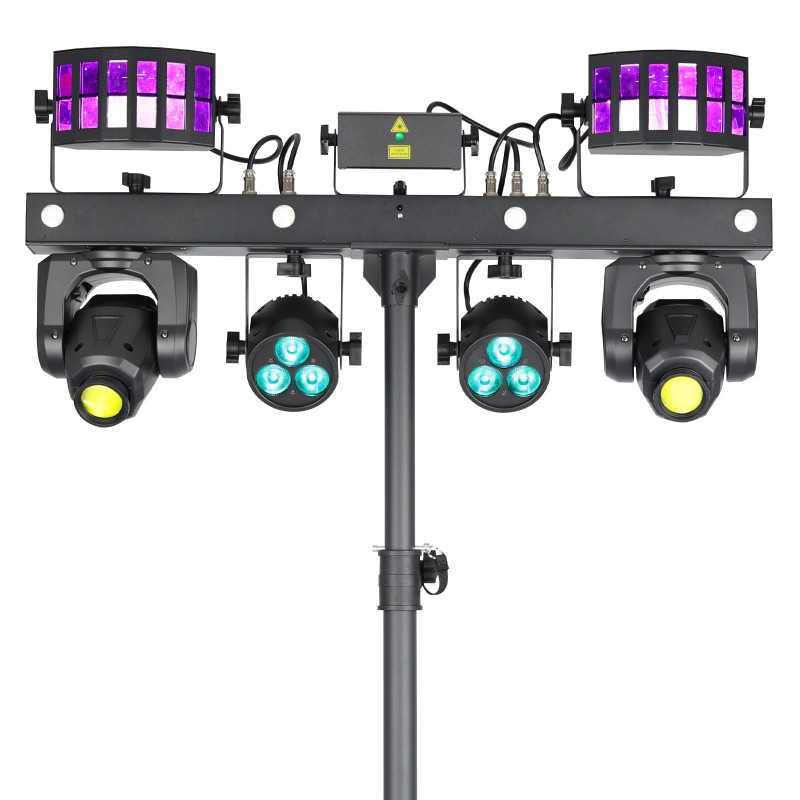

Gigabar FX1 Bar System

The Equinox Gigabar FX1 is a powerful 5-in-1 LED bar system that integrates par, moving head, derby, strobe, and laser effects to deliver vibrant and dynamic light shows. Perfect for DJs, entertainers, and events, this all-in-one lighting solution features built-in shows, sound-to-light modes and DMX control. Also included is a foot controller for easy on-stage control and an IR remote for complete flexibility. Stands and carry bags complete the package, protecting the system from transportation damage.

Par:3 x 8W quad-colour COB LEDs (RGBW)

Beam angle: 20°

Moving Head:1 x 30W white LED (7000K

)Beam angle: 11°

Gobo wheel: 7 static gobos + open

Colour wheel: 7 colours + open

Manual focus

Pan: 540°, Tilt: 235°

Derby:3 x 8W quad-colour COB LEDs (RGBW)

Beam angle: 3° (per beam)

Strobe:4 x 1W white LEDs (8500K)

Beam angle: 50°

Laser:638nm/100mW (red) laser diode, 515nm/30mW (green) laser diode

DMX channels: 3/19 or 34 selectable

Auto, sound active and primary/secondary modes

0 - 100% dimming

Variable strobe

4 button menu with LED digital display

PowerTwist input/output

3-Pin XLR input/output

5-Pin input for included foot controller

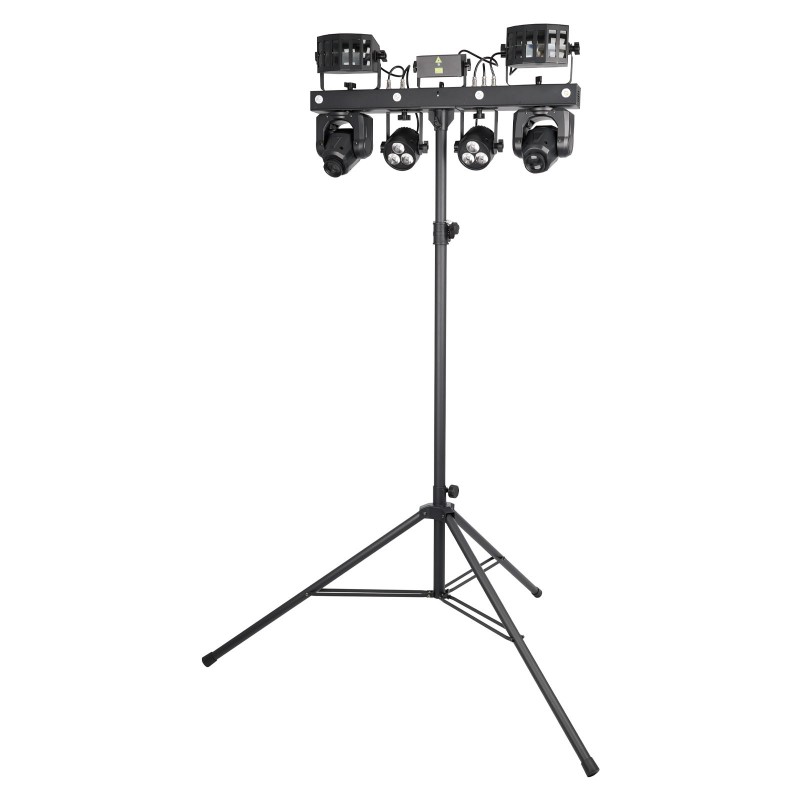

Height adjustable stand included

Carry bags included

Fan cooled

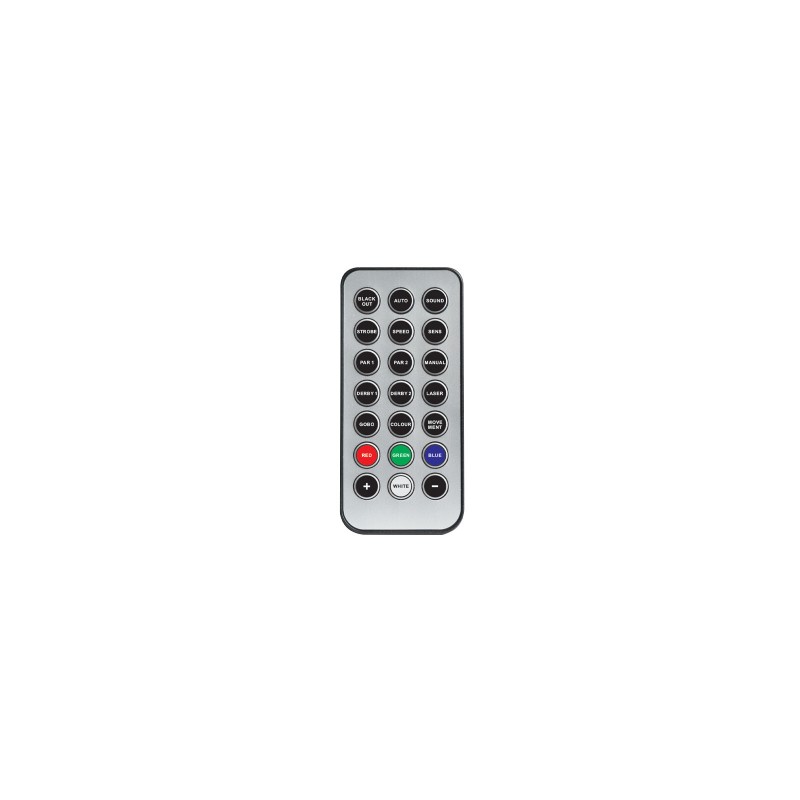

Supplied with IR remote

Specification

Power supply: 100~240V, 50/60Hz

Fuse: F3A 250V

Dimensions (without stand): 395 x 840 x 171mm

Dimensions (stand height): 1820-2640mm

Weight: 16.5kg

Order code: EQLED067

Download Manual.pdf
