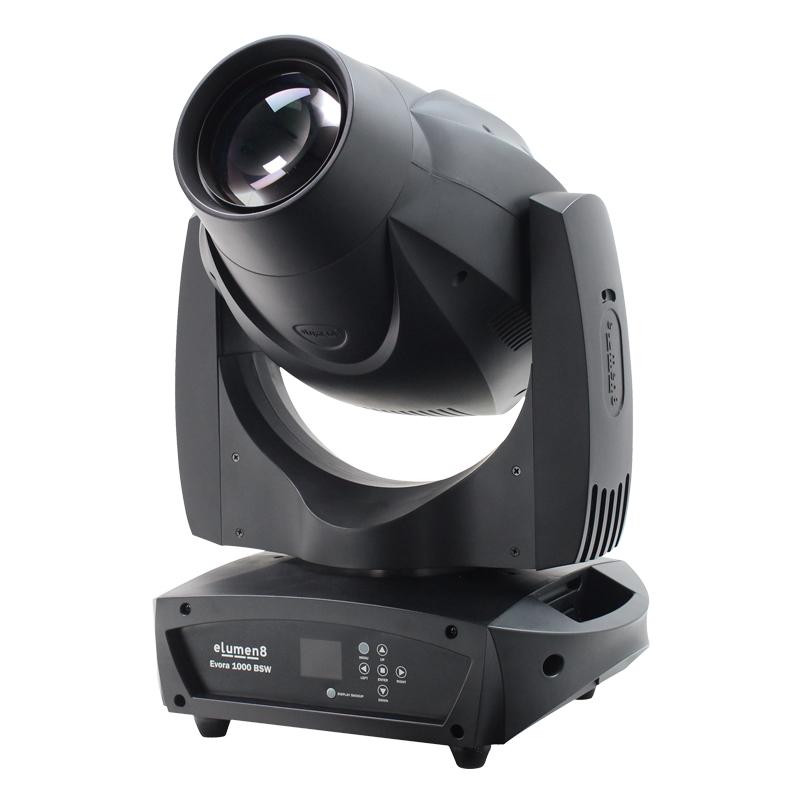

Evora 1000 BSW

The Evora 1000 BSW is a 3-in-1 hybrid moving head with super smooth 3 phase motors. Boasting an immensely bright 180W LED, its output is ample for most large venues and events. With the ability to switch between a beam, spot and wash the Evora 1000 BSW offers a huge potential of creativity for projecting patterns onto walls or generating stunning mid-air effects. Used as a beam effect (4.5°), the unit emits sharp beams of light whilst as a spot (20°) the fixture is capable of stunning projections. When operated in the wash mode (45°) the unit produces soft-edged washes.

- 2 year warranty

- 1 x 180W white LED

- Beam angle: 4.5° (Beam), 20° (Spot), 45° (Wash)

- 4.5° - 5,220 Lux @ 10m, 20° - 720 Lux @ 10m, 45° - 163 Lux @ 10m

- 3.6kHz refresh rate

- Motorised zoom and focus

- 8 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism

- Frost filter

- Gobo wheel 1: 9 rotating, indexable, replaceable gobos + open

- Gobo wheel 2: 15 static gobos + open

- Colour wheel: 9 colours + 3200K + open

- DMX channels: 16

- RDM (Remote Device Management)

- Auto, sound active and master/slave modes

- Pan/tilt auto correction

- 16-Bit pan/tilt positioning

- Pan: 540° or 630° selectable, Tilt: 270°

- 0-100% dimming and variable strobe

- Supplied with quick release omega clamps

- 6 push button menu with 1.8” LCD display

- PowerCON input/output

- 3-Pin XLR input/output

- 5-Pin XLR input/output

- Fan cooled

Specification

- Power consumption: 290W

- Power supply: 100~240V, 50/60Hz

- Fuse: T3A 250V

- Dimensions: 590 x 390 x 290mm

- Weight: 19.4kg
