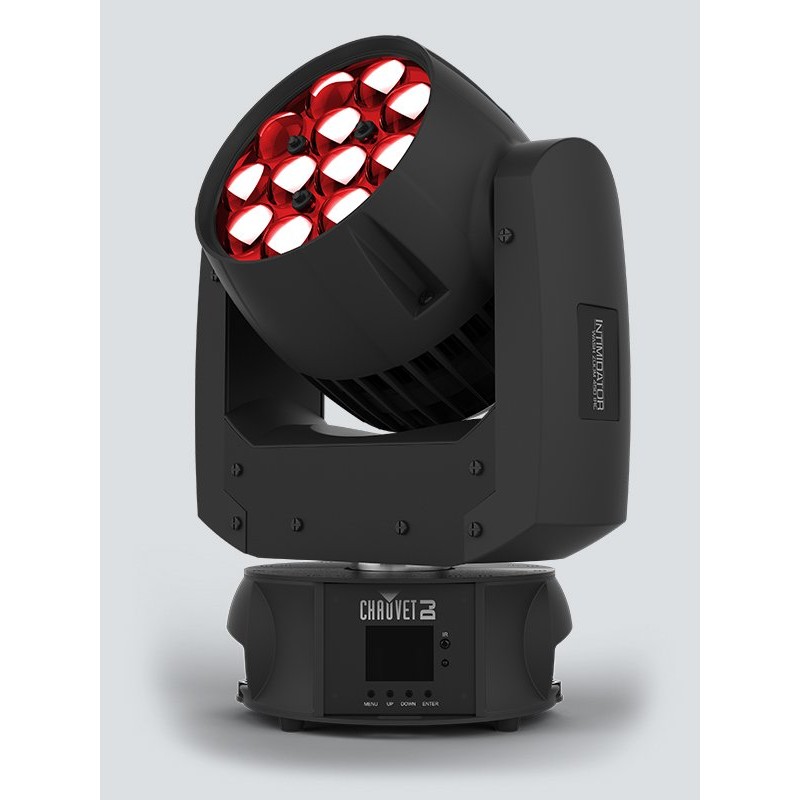

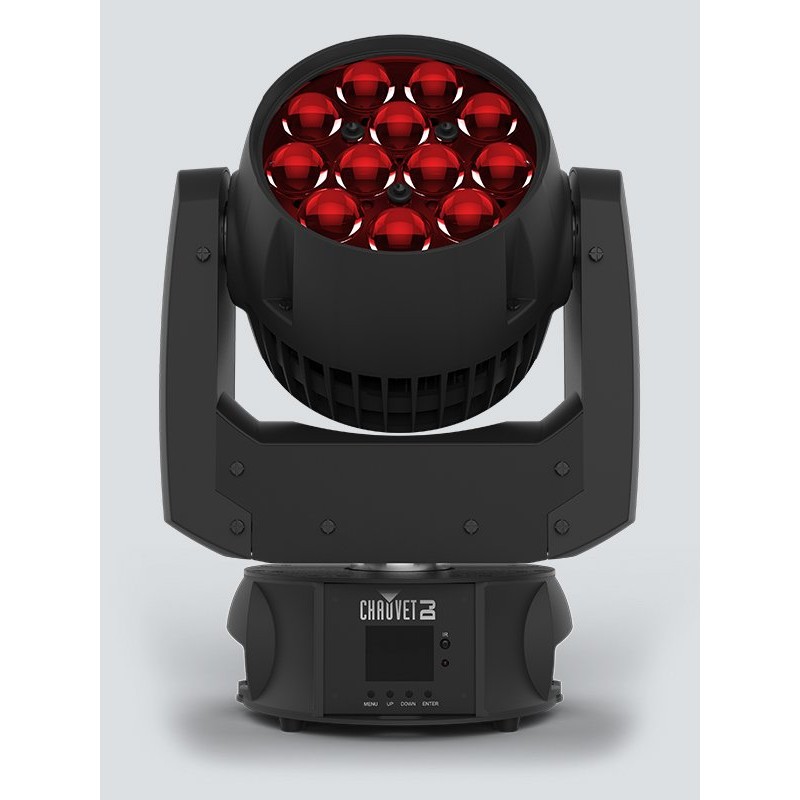

Intimidator Wash Zoom 450 IRC

Intimidator Wash Zoom 450 IRC is a powerful moving head wash fitted with twelve 15 W quad-color RGBW LEDs and a motorized zoom for short-throw or longthrow applications. Other convenient features include a Totem mode that keeps beams aimed at the dance floor and eye-catching auto programs with zone control. Wireless (non-DMX control is possible using the optional IRC-6 remote. Up to four fixtures can be linked to create synchronized shows in automated, sound and master/slave modes.

Feature-packed compact moving head wash fitted with 15 W quad-color RGBW LEDs

Beams always remain on the dance floor using the built-in, innovative Totem modeSet, save, and recall 1 scene manually directly from the full-color LCD display

Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound modes

Convenient, wireless non-DMX control using the optional IRC-6 remote

Motorized zoom for short-throw or long-throw applications

Generate complex looks easily with built-in, eye-catching auto programs with zone control

Simple navigation and a full text readout with the full-color LCD screen

Save time running cables by power linking multiple units

Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

Fits best in the CHS-50 VIP Gear Bag

DMX Channels: 14, or 29

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

Light Source: 12 LEDs (quad-color RGBW) 15 W (3.7 A), 50,000 hours life expectancy

Strobe Rate: 0 to 20 Hz

PWM Frequency: 1,200 HzIlluminance: (14°): 25,610 lux @ 2 m (58°): 1,960 lux @ 2 m

Power Linking: 4 units @ 120 V; 8 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 219 W, 1.9 A @ 120 V, 60 Hz 207 W, 1 A @ 230 V, 50 Hz

Zoom Angle: 14° to 58°

Weight: 15.8 lb (7.2 kg)

Size: 7.6 x 10.9 x 14.3 in (194 x 277 x 363 mm)

Approvals: CE

Optional Controllers: IRC-6
