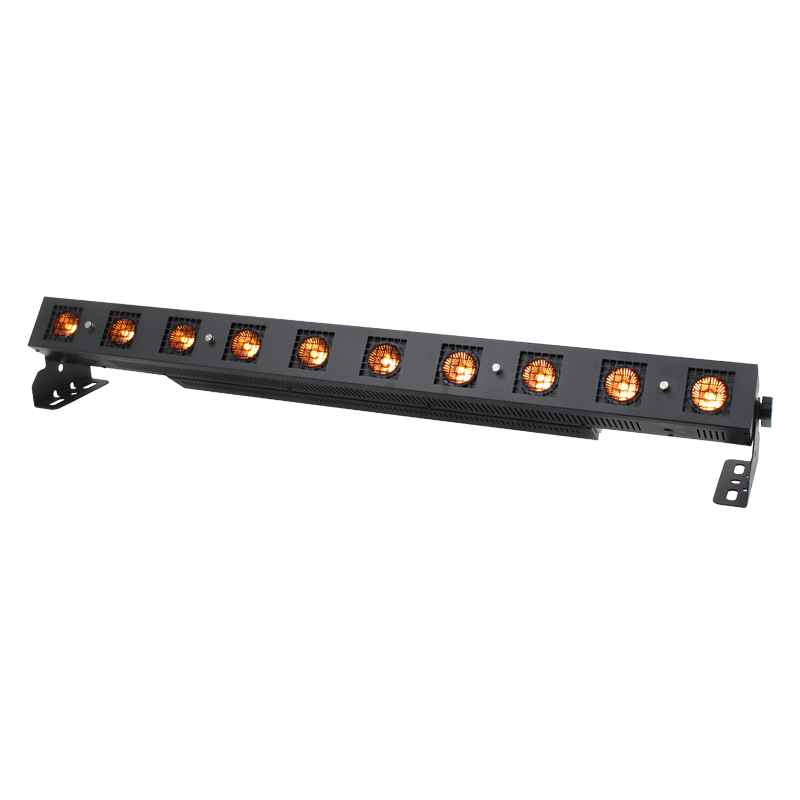

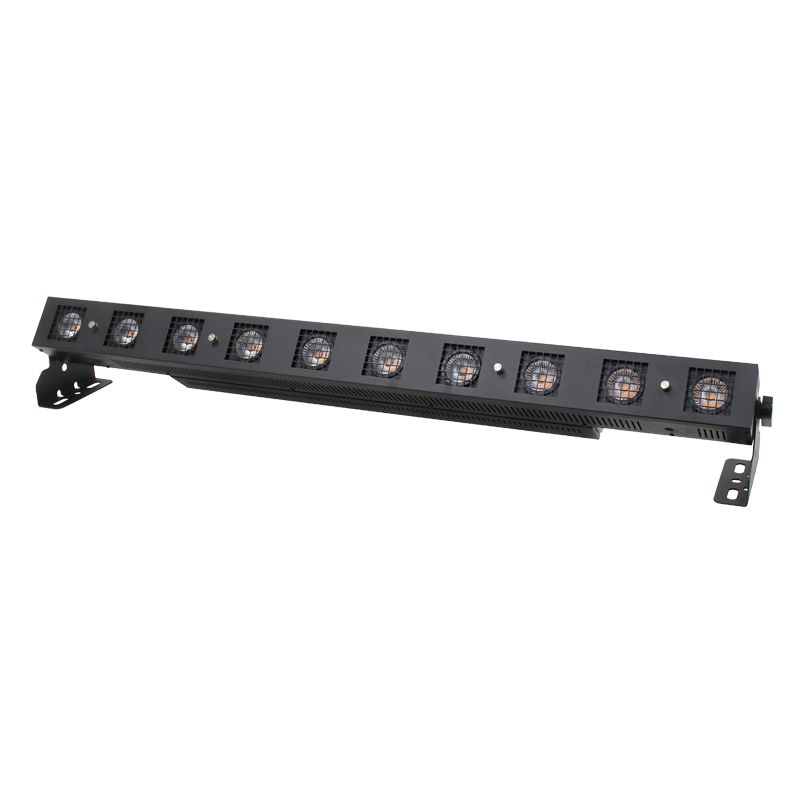

Tour Batten TW

The Tour Batten TW features 10 x 10W tunable warm white LEDs with a variable colour temperature between 1600K–2900K. The temperature can be set via the rear menu or DMX. When dimmed, the fixture can emulate a traditional halogen lamp with an orange glow similar to a sunstrip.

Features

- 2 year warranty

- 10 x 10W tuneable warm white LEDs

- Halogen emulation with automatic colour temperature shift between 2900K and 1600K

- Substantial power saving over halogen lamps

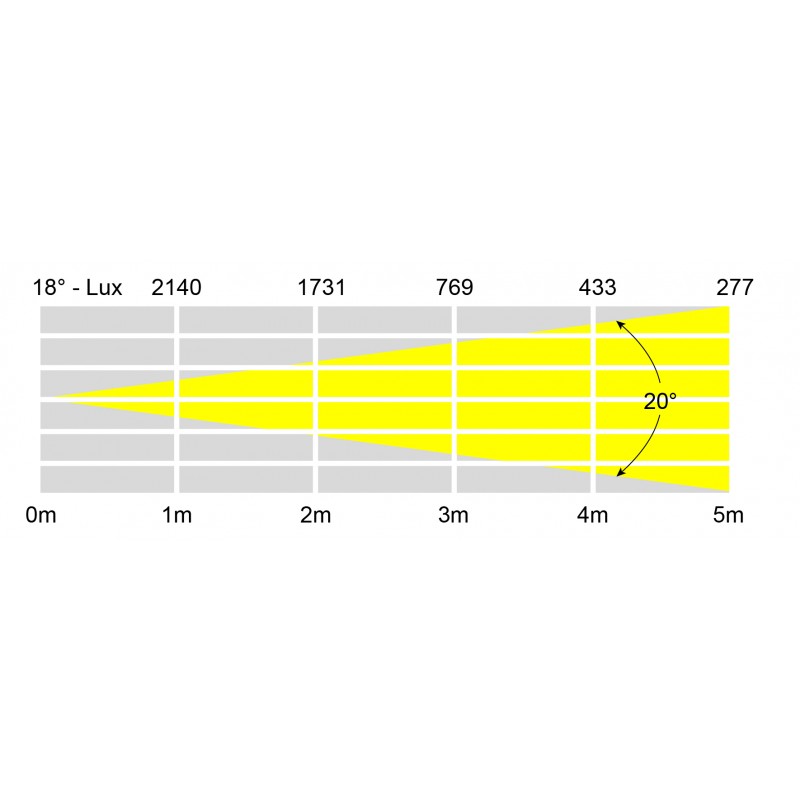

- Beam angle: 18°

- 1,731 Lux @ 2m

- DMX channels:8 bit

- 1/2/5/10/616 bit

- 2/4/5/20

- Static, auto run and master/slave modes

- Built in macros with adjustable speed and fade times

- RDM (Remote Device Management)

- 8 or 16 bit 0 - 100% dimming

- Rugged, rental ready housing (fits inside sunstrip sized flightcases)

- Industry standard chassis dimensions

- End brackets allow for multiple rigging and floor standing applications

- 4 push button menu with LCD display

- PowerCON input/output

- 5-Pin XLR input/output

- Convection cooled

Specification

- Power consumption: 110W

- Power supply: 100~240V, 50/60Hz

- Dimensions: 140 x 1000 x 130mm

- Weight: 6.6kg

Download Manual.pdf
