CONTROL USB

Newhank Control USB 19″ Stereo Rack Mixer with USB/SD card player

Control USB is a basic 3 Channel 19″ Stereo Rack Mixer with USB/SD card player.Channel 1 is assigned to the Microphone input. On Channel 2 You can play back your mp3 music files from USB/SD-card, or connect to another portable audio device via the 3.5mm external stereo-input. Channel 3 lets you control any external line source via a pair of stereo RCA inputs on the rear.

Features

Compact 1u low noise audio design

USB/SD mp3 card player

Individual volume controls

Master with Volume, Bass and Treble controls

Combo XLR/Jack Mic and 3.5mm stereo Line input on the front panel

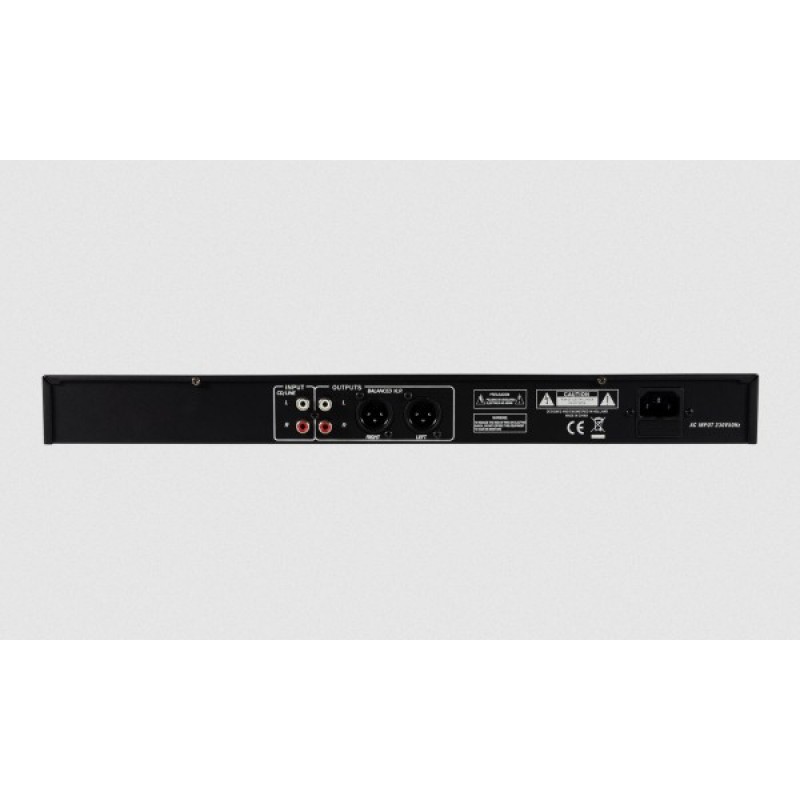

1 Stereo RCA Line input on the rear

Master outputs both on RCA and Balanced XLR

Mic 600 0hm input impedance

S/N Ratio: >98 dB

Total Harmonic Distortion: <0.02% (IKHZ)

Frequency response 20Hz-20KHZ

Power Consumption 200-240v AC, 4.5W

Face Panel 483x44.4mm

Rear Panel 400x44.4mm

Casing Depth 139mm (excluding connectors)

Weight: 4KG
