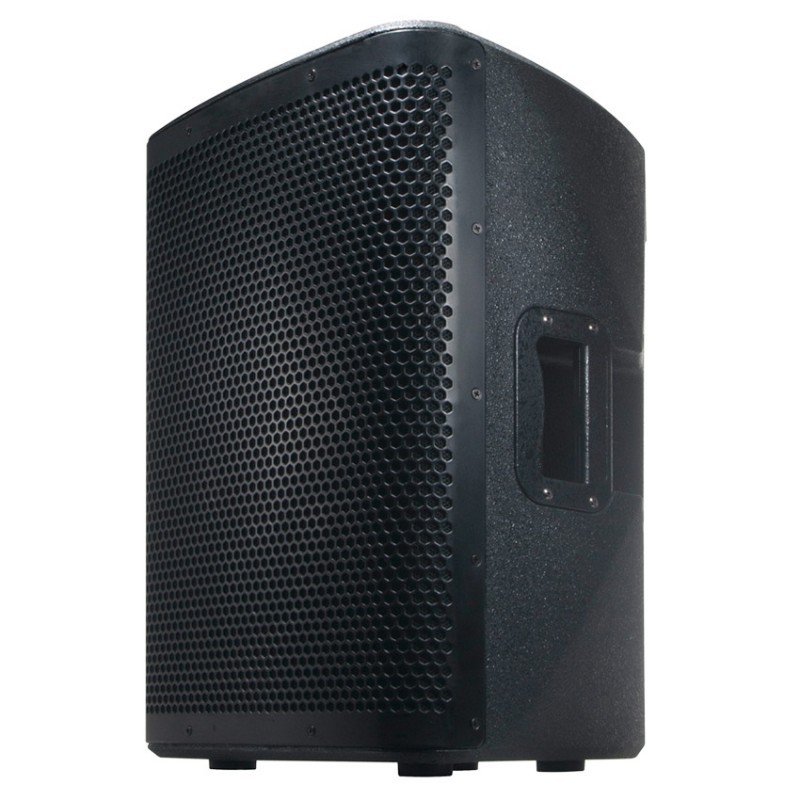

CPX 15A

Features:

- 2-way Speaker with High Efficiency Class D Amplifier.

- 500W Built-in Bi-amplifier

-Time Aligned Electronic Crossover

- 5 M8 Rigging points

- Stand Mountable

- Heavy Duty steel grill

- Ergonomic handles

- Power and Clip LED Indicators

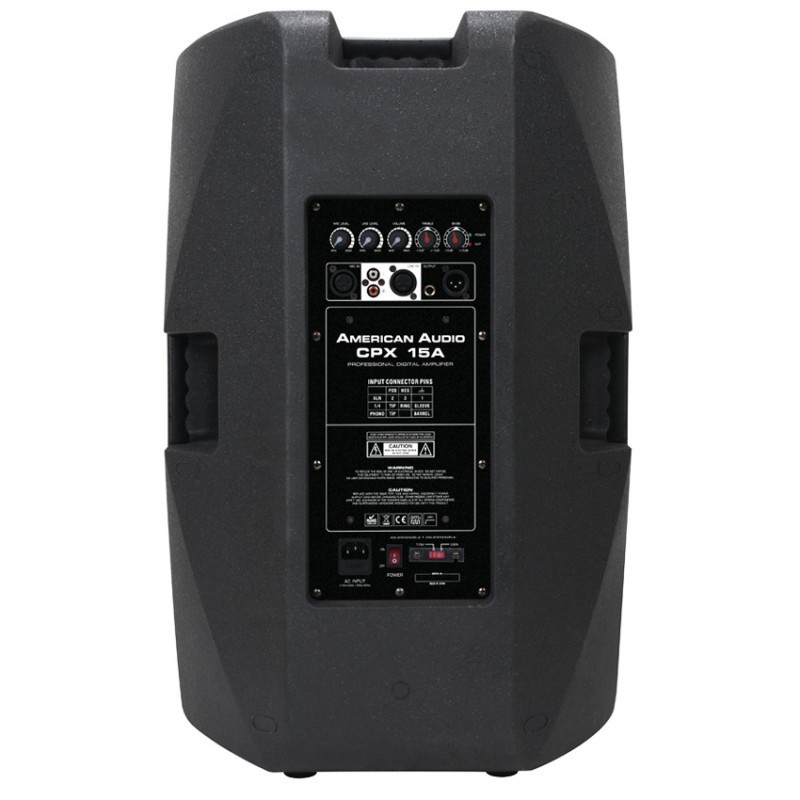

- XLR and RCA inputs

- XLR and TRS throughputs

- Clipping and Thermal Protection

- S/N Ratio: Line 100dB, Mic 80dB

- Frequency Response: 30 Hz – 18 kHz

- Nominal Coverage: 90º x 60º

- Low Frequency: 15" (390mm), 2.5" (75mm) Voice Coil

- High Frequency: 44mm Voice Coil, 1"(25mm) Throat

- Input Sensitivity: 0.5V

- Max. SPL: 114dB

- Balanced Input Impedance: Line 20KΩ, Mic 3.6KΩ

- Unbalanced Input Impedance: Line 10KΩ, Mic 1.8KΩ

- Low Pass: 2nd order filter 2.7KHz

- Low Cut: 2nd order filter 30Hz

Channel Equaliser:

- Bass: 100Hz +/- 12dB

- Treble: 10KHz +/- 12dB

- Dimensions (LxWxH): 456 x 390 x 680mm

- Weight: 28 kg

Specifications subject to change without notice.
