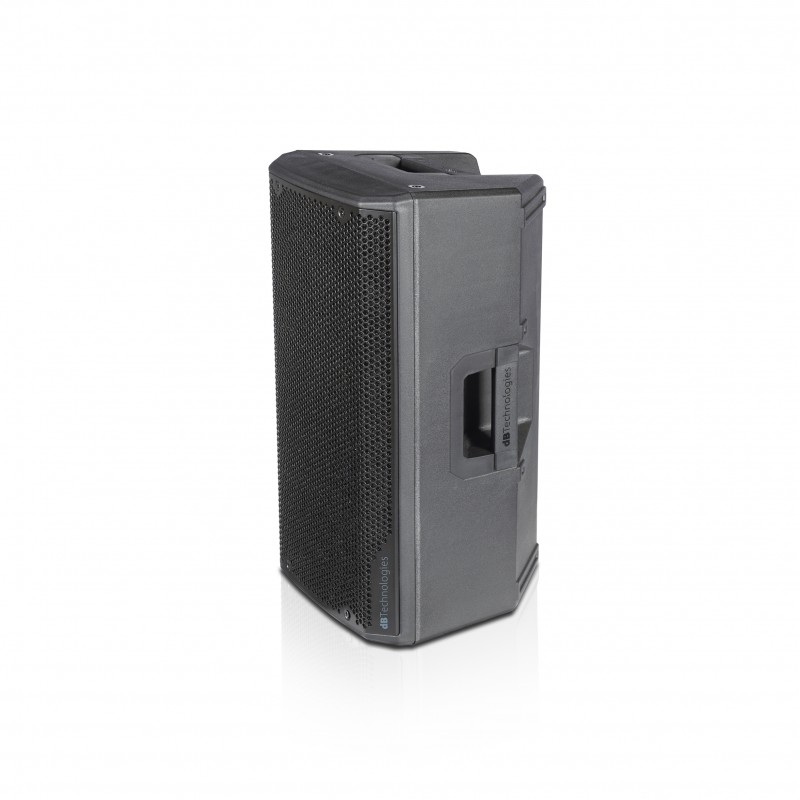

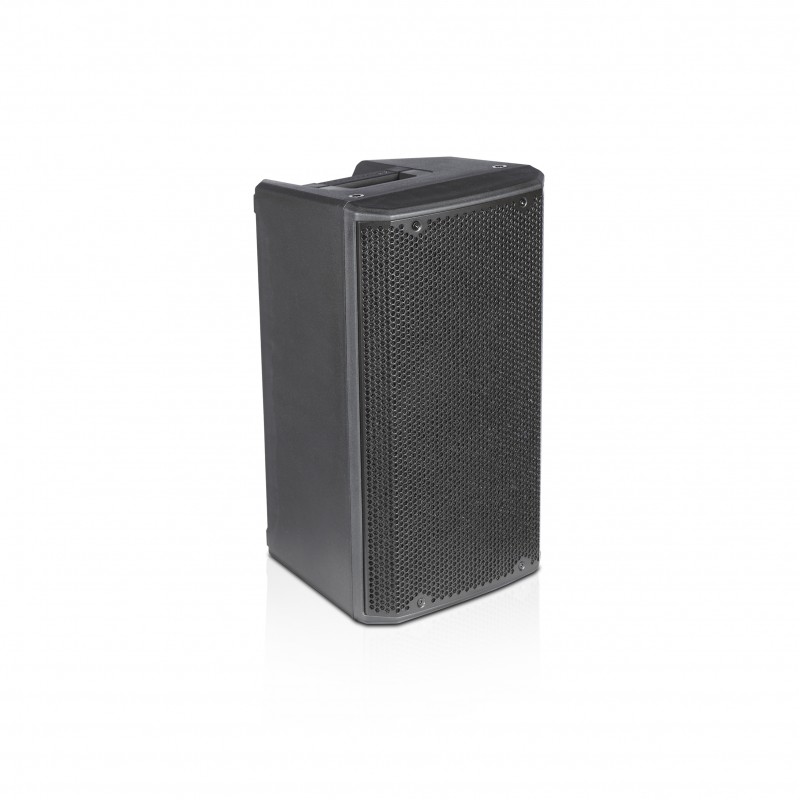

OPERA 10

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

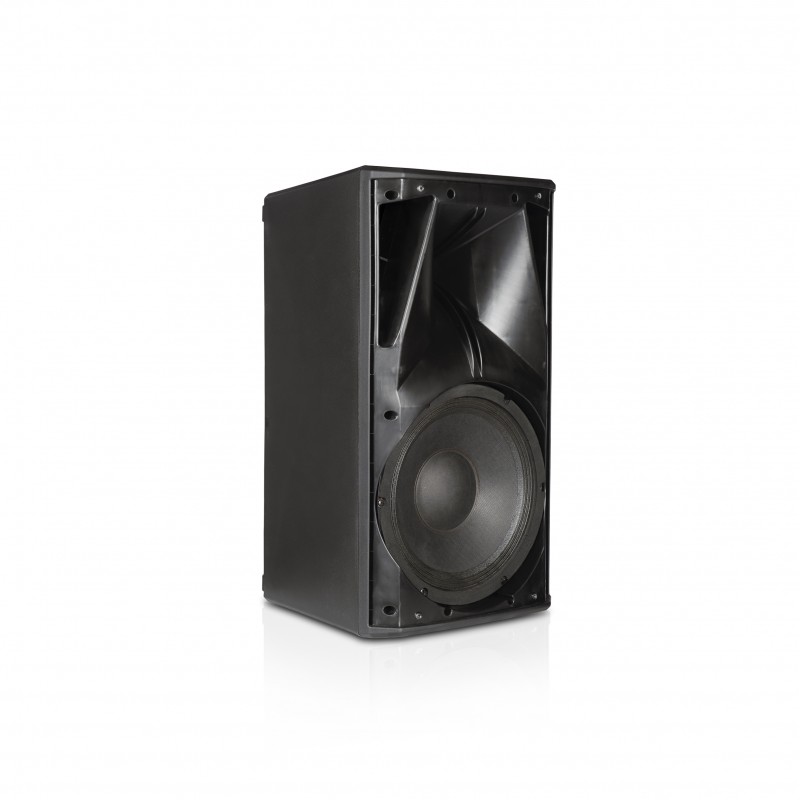

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Featuring:

1200 w peak power

Newly designed asymmetrical horn

Advanced DSP with FIR processing

2 input channels (mic-line/mic-instr)

Selectable output channel (link ch1/mix ch 1+2)

8 EQ presets

Technical Data

Speaker Type    2-Way Active Speaker

Frequency Response     (-10dB)    58 - 20.000 Hz

Frequency Response     (- 3dB)    70 - 19.600 Hz

Max SPL    128 dB

HF    1" Exit, 1.4 v.c.

Type HF    Compression driver

Horizontal Directivity     100° (85° up/120° down)

Vertical Directivity    85° (+ 25°/-60°)

Horn    Asymmetrical Horn

LF    10", 2" v.c.

Amp Technology    Amp SMPS Power supply dual range

Amp Class    Class D

RMS Power 600 W

Peak Power1200 W

Controller    DSP 56 bit

AD/DA Converter    24 bit/48 KHz

System Presets    Rotary Encoder (8 Presets)

CrossOver Frequency     2000 Hz

Limiter    Peak, RMS, Thermal

Advanced DSP Functions     Linear Phase FIR Filters

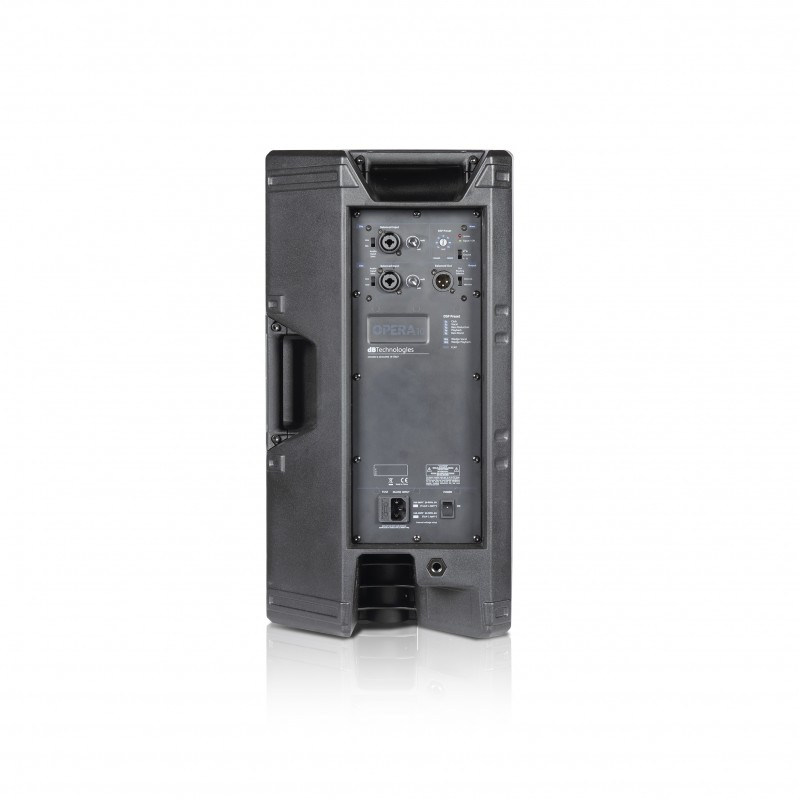

Signal Input     1xCombo (XLR/Jack 6.3 mm) MIC/Line

                          1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output  1x XLR Male (CH1 Link/Mix OUT) Selectable

Housing    Polyproylene

Grille     Full grille

Handles     1 on left Side, 1 on Top

Rigging Points     2XM10 on Top + 1x M10 on Back

Pole Mount     D36 mm

Angles up     Monitor use 45°

Width    300 mm (11.81 in)

Height    552 mm (21.73 in)

Depth    301 mm (11.85 in)

Weight    12.3 kg (27.12 lbs)
