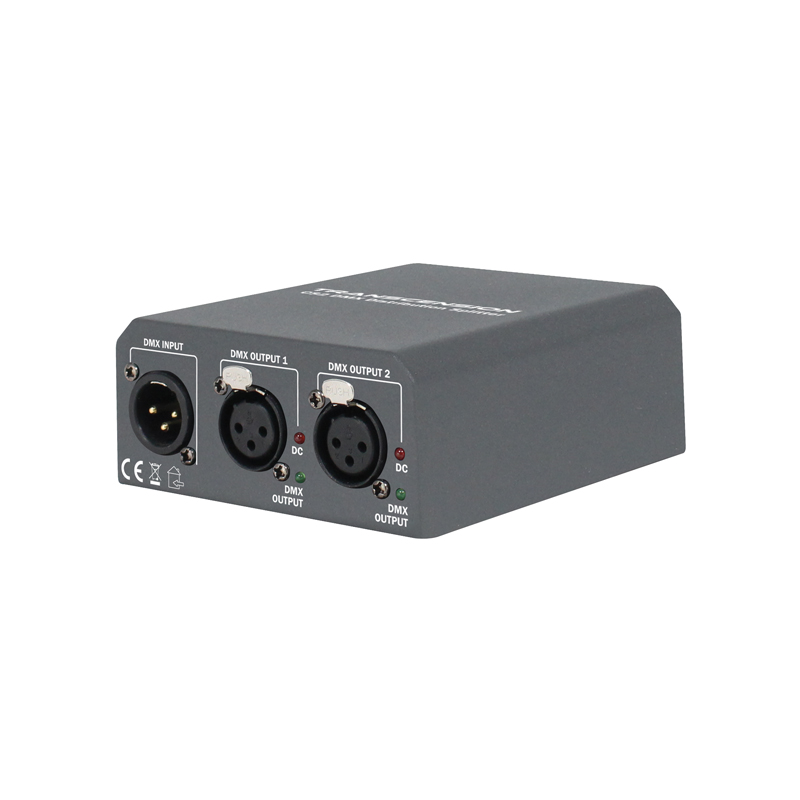

CS2 DMX Distribution Splitter

A combination 2 way DMX booster/distributor featuring one input and two outputs plus IEC power input and IEC power output. Both DMX input and DMX outputs are provided with 3-Pin XLR connectors, each DMX output has an independent driver.

Features

- 2 way DMX distributor with one input and two outputs

- 3-Pin XLR input- 3-Pin XLR output per channel

- Each DMX output features an independent driver

- 100% electrical isolation between all inputs/outputs

- IEC power input with IEC power output

- Rugged, steel chassis

Specification

- Fuse: F500mA 250V

- Dimensions: 50 x 150 x 105mm

- Weight: 0.7kg

Download Manual.pdf
