TS212S

For those performance situations where additional low-frequency output and punch are required, even beyond the already-impressive bass capability of the TS2 full-range speakers, the new TS2 powered subwoofers are the perfect solution.

Pair TS212S with any full-range speaker system to extend the bass response and dramatically enhance the overall impact of the music being played.

Output Power: 1250 W peak, 625 W continuous

Transducer Low: 12” (305 mm) woofer, 3” (76 mm) voice coil

Frequency Response: 42–100 Hz (-10 dB)Maximum SPL: 127 dB (@ 1 m)

Connections: (2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input

Input Level: Line +4 dBu (nominal)

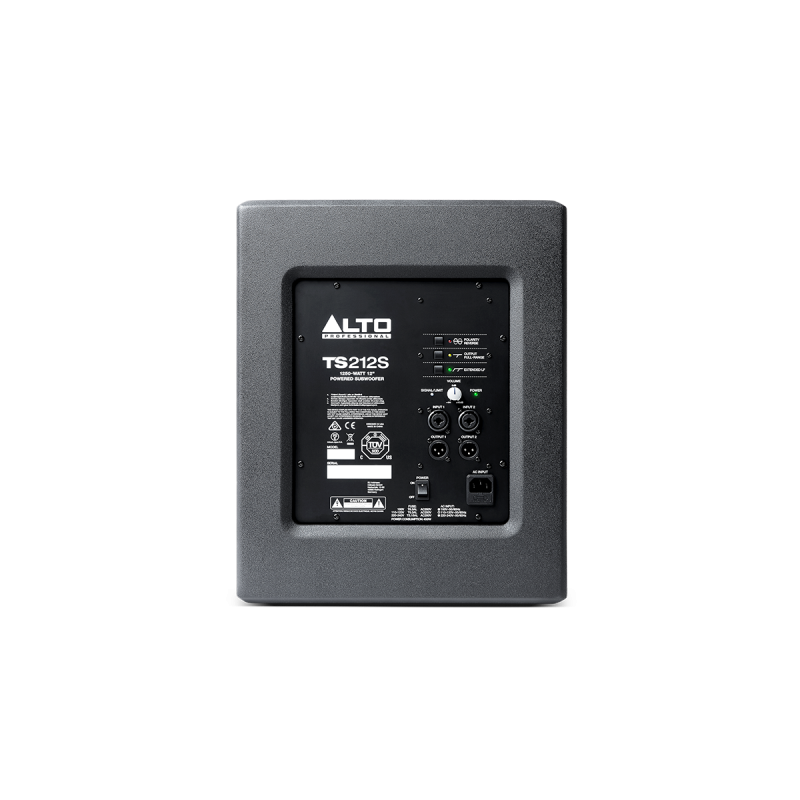

External Controls: Volume control, signal/clip limiter with LED, polarity-reverse switch,high-pass filter bypass switch with LED, extended low-frequencyswitch with LED, power switch with LED

Electronic Protections: Electronic clip, thermal and transducer overdrive protection

Enclosure: Internally braced plywood cabinet; 35 mm mounting pole socket ontop panel

Power Connection: Standard IEC cableHz

Consumption: 450 WInput Voltage: 110–120, 220–240 VAC; 50/60

Fuse: T6.3AL AC250V (110–120 V) or T3.15AL AC250V (220–240 V)

Dimensions (W x D x H): 18.0” x 17.75” x 20.0” / 456 x 451 x 508 mm

Weight: 45 lbs. / 20 kg
