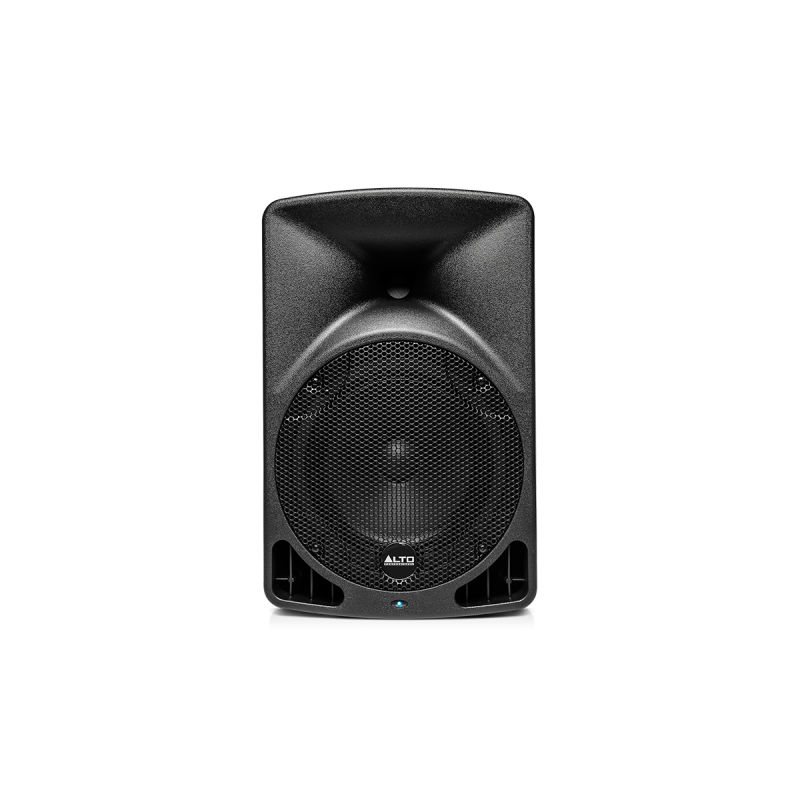

TX8

280-Watt 8-inch 2-Way Active loudsPeaker (280Watt PeakPower)

Designed and tuned in the USA

LightWeight 12.2 lBs / 5.53 kg

Built By the Best

Alto Professional began a live sound revolution with the top-selling Truesonic loudspeaker series. Now, Alto Professional has re ned those same innovative technologies to create the remarkable TX Series. The TX Series loudspeakers were designed with the same ideal of quality components, and transparent sound that the Truesonic loudspeaker series have become known for.

Big sound, Portable Package

Experience power, performance, and portability. TX8 comes equipped with ef cient, bi-amped Class D ampli cation that pumps out a generous 280 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 8” low-frequency driver and 1” high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.

Ready for anything

Built to travel, the road-ready TX8 is both lightweight and portable. Trapezoid contouring allows either upright or wedge- monitor operation. A pole-mount socket and a comfortable handle are built-in. Create a custom setup using the Link output to chain multiple cabinets together. For the musician, DJ, or live-sound provider craving professional audio reproduction, TX8 delivers impressive, accurate sound night after night.

Features

280 Watts peak / 140 Watts continuous power

Ef cient Class-D power amp, bi-ampli ed

8” LF woofer with 1.5” voice coil

1” titanium diaphragm HF compression driver with 1” voice coil

Balanced XLR Mic/Line Input and Link Output

Precision electronic crossover

Integrated analog limiter and overload protection circuitry Lightweight, portable design

Integrated 36mm speaker pole socket

Main or wedge monitor operation

Designed and tuned in the USA

Specification

System Type    2-Way Active Ported Speaker

Woofer    8” Woofer 1.5” voice coil

Hf driver    1” titanium diaphragm HF compression driver with 1” voice coil

Amplifier    Class D SMPS, 280 Watts Peak

Horn Coverage h° x v°    90°H x 45°V

Frequency Response (-3dB)    75 Hz - 20 KHz

Crossover Frequency    2.5 KHz

Max SPl    113 dB at 1m

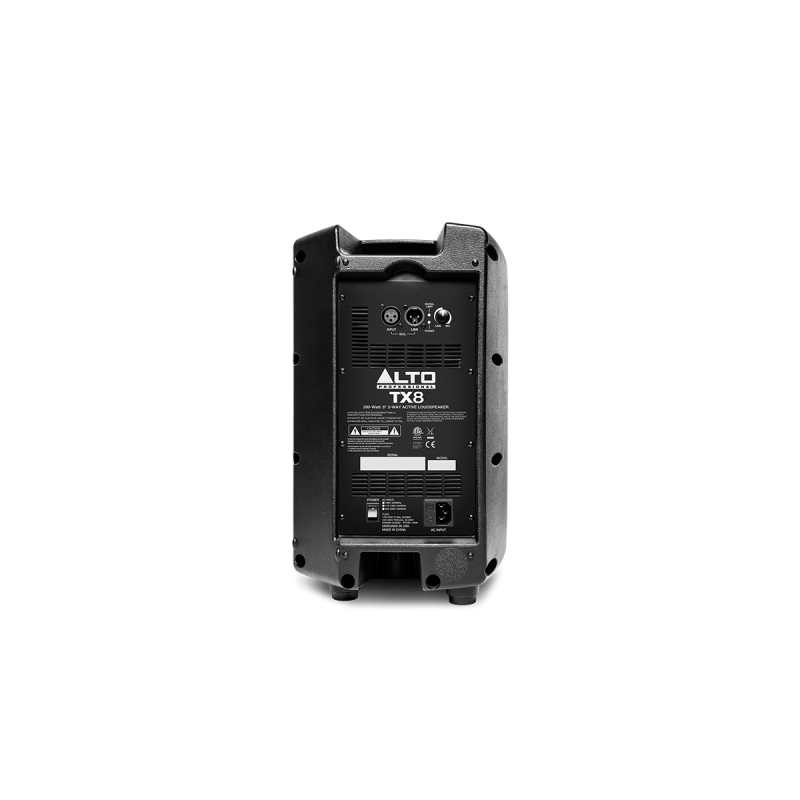

Connector    Mic/Line In & Link with XLR

External Controls    Volume Control / Power ON with green LED / Clip Limiter with Red LED

Electronic Protection    Thermal/Overload/Analog limiter/Compressor

Power Supply    100V-240V ~ 50/60Hz

Enclosure Construction    Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, rubber feet, 1 handle (top)

Mounting    36mm standard pole mount

Dimensions (hxWxd)    16.5 x 10.6 x 9.4 in / 420 x 270 x 240 mm

Net Weight    12.2 lbs / 5.53 kg
