Vizi BSW300

The Vizi BSW 300 is ADJ’s most powerful LED Moving Head to date. It uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.

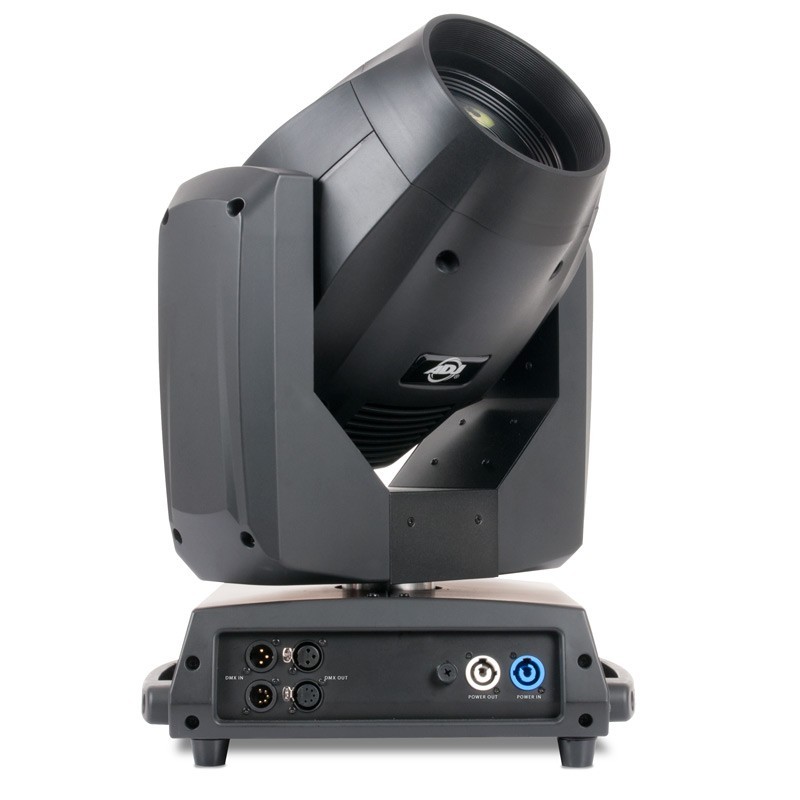

The Vizi BSW 300 offers motorized focus, motorized zoom, two 6-facet rotating prisms (one linear & one circular), 2 separate color wheels, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a LCD function display on the front panel, with the rear panel offering powerCON In/Out and 3-pin & 5-pin DMX connections.

• Hybrid Beam / Spot / Wash Moving Head

• Gobo scroll mode

• LED DMX 4-Button menu system

• Auto X-Y repositioning

• Gobo Shake effect for both wheels

• Independent gobo and color wheels

• Pan/Tilt Invert

• 16-Bit Pan/Tilt Positioning

• Pan/Tilt speed adjustment

• Prism Rotation

• Motorized Focus

• Motorized Zoom

• Shutter: Pulse effect; random strobe slow to fast

• Dimming: 0% - 100%

• Strobe effect

• Frost Filter

• Omega Quicklock brackets included

• 1 x 300 White LED engine

• 2 DMX Channel Modes: 18 & 21 channels

• Pan: 540-degree

• Tilt: 270-degree

• Stepper motors with micro stepping

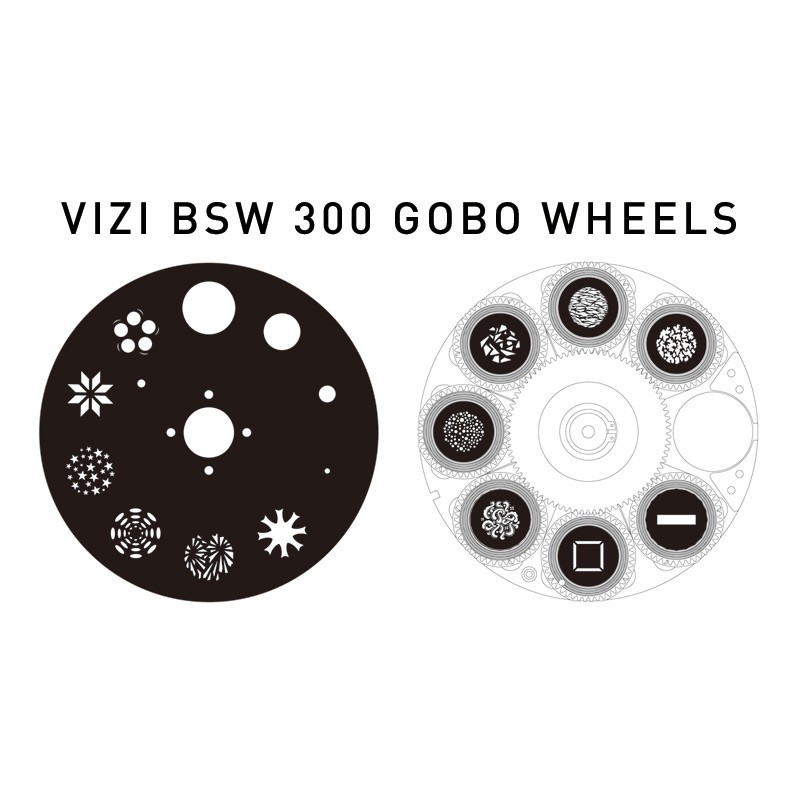

• Beam angle: 1-9˚ (Beam); 10-20˚ (Spot); 12-23˚ (Wash)• 14 colors + white• 2 separate Gobo Wheels: Wheel 1: 6 Static Fixed Gobos + Spot & 3 Variably Sized Beam Aperture Gobos; Wheel 2: 7 Rotating Gobos + Spot (6 Colored Glass Gobos and 1 Metal Gobo)

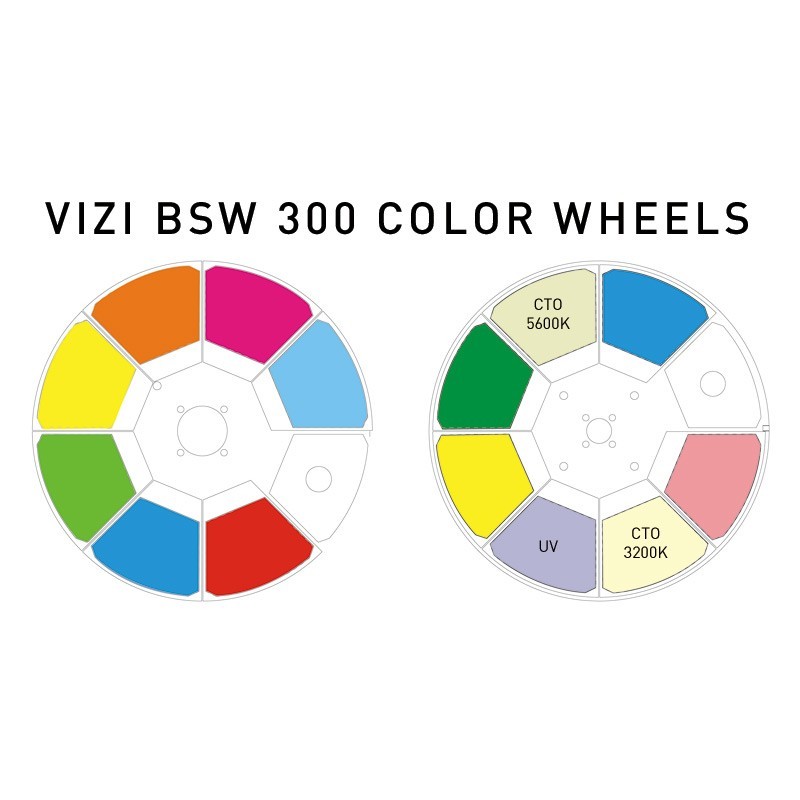

• 2 separate Color Wheels: Wheel 1: 7 Static Colors plus Open; Wheel 2: 7 Static Colors plus Open including: CTO (3200K); CTC (5600K) & UV

• 6-facet Prisms (Circular & Linear)

• 3/5-pin XLR In/Out

• PowerCon In/Out

• Power Consumption: 345W

• Multi-voltage Operation: 100-240V, 50Hz/60Hz

• Dimensions (LxWxH): 14.75” x 12.75” x 21.5” / 376 x 325 x 545mm

• Weight: 49 lbs. / 22 kg.
