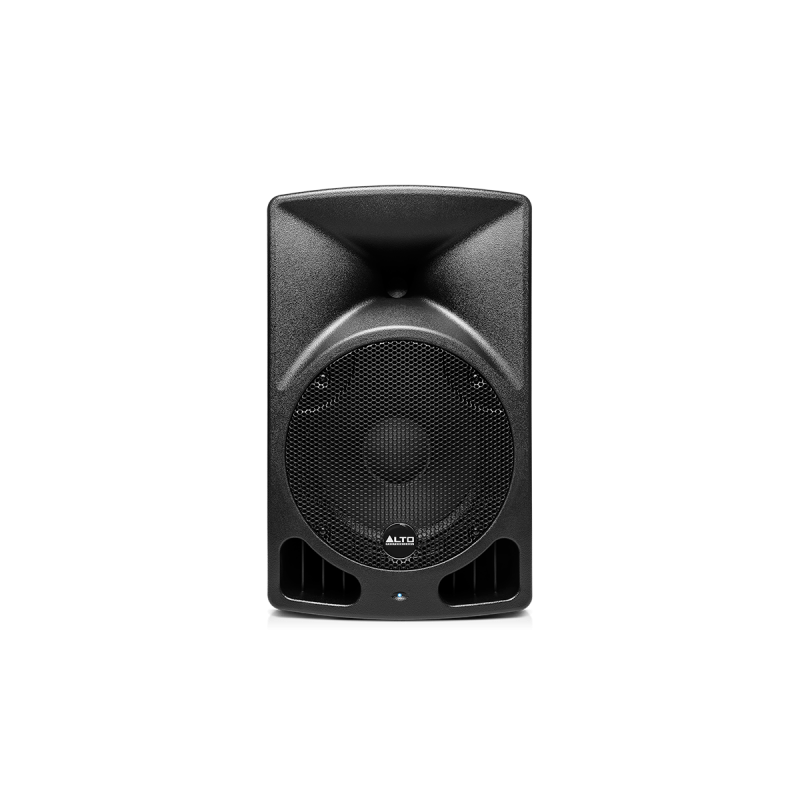

280-Watt 10-inch 2-Way Active LoudsPeaker (280w Peak Power)

Designed and tuned in the USA

Light Weight 15.26 lBs / 6.92 kg

Built By the Best

Alto Professional began a live sound revolution with the top-selling Truesonic loudspeaker series. Now, Alto Professional has re ned those same innovative technologies to create the remarkable TX Series. The TX Series loudspeakers were designed with the same ideal of quality components, and transparent sound that the Truesonic loudspeaker series have become known for.

Big sound, Portable Package

Experience power, performance, and portability. TX10 comes equipped with ef cient, bi-amped Class D ampli cation that pumps out a generous 280 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 10” low-frequency driver and 1” high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.

Ready for anything

Built to travel, the road-ready TX10 is both lightweight and portable. Trapezoid contouring allows either upright or wedge- monitor operation. A pole-mount socket and a comfortable handle are built-in. Create a custom setup using the Link output to chain multiple cabinets together. For the musician, DJ, or live-sound provider craving professional audio reproduction, TX10 delivers impressive, accurate sound night after night.

Features

Features

280 Watts peak / 140 Watts continuous power

Efficient Class-D power amp, bi-amplified

10” LF woofer with 1.5” voice coil

1” titanium diaphragm HF compression driver with 1” voice coil

Balanced XLR Mic/Line Input and Link Output

Precision electronic crossover

Integrated analog limiter and overload protection circuitry

Lightweight, portable design

Integrated 36mm speaker pole socket

Main or wedge monitor operation

Designed and tuned in the USA

Specification

System Type: 2-way active ported speaker

LF Driver: 10” woofer, 1.5” voice call

HF Driver: 1” titanium diaphragm, 1” voice coil

Amplifier: Class D SMPS, 280 watts peak

Horn Coverage: 90°H x 45°V

Frequency Response (-3dB): 75 Hz – 20 kHz

Crossover Frequency: 2.5 kHz

Max SPL: 116 dB at 1m

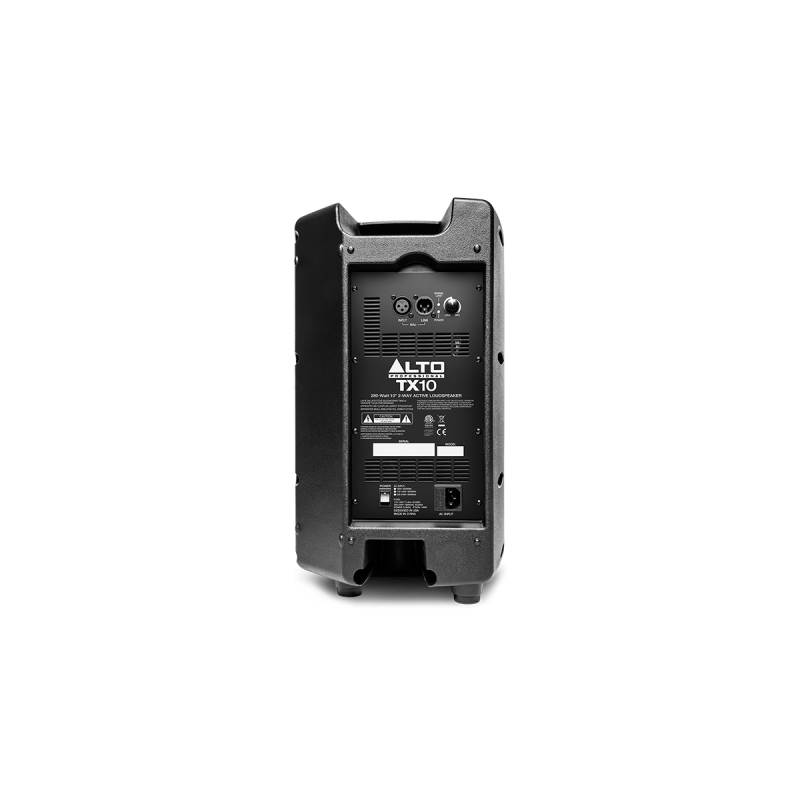

Connector: XLR Mic/Line Input & XLR Link output

External Controls: Volume control / Power ON with green LED / Clip Limiter with red LED

Electronic Protection: Thermal / Overload / Analog Limiter / Compressor

Power Supply: 110V-240V ~ 50/60Hz

Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top

Mounting: 36mm standard pole mount

Dimensions: (HxWxD): 18.1 x 11.2 x 10.4 in / 460 x 285 x 265 mm

Net weight: 15.26 lbs / 6.92kg
