VIO L1608

VIO L1608 is a 3-way, tri-amplified active line array module that delivers dramatic output, refined clarity and consistent coverage from a deceptively compact footprint. It advances dBTechnologies’ research into precision-scaled acoustic architecture — in simpler words, bringing three-way performance to an enclosure the size of a traditional 2-way dual-8" array.

The enclosure contains dual 8-inch neodymium LF drivers, and a coaxial MF–HF driver - with a low crossover point around 600 Hz - which is assembled on an optimized waveguide, producing a stable horizontal response and a natural midrange character across the listening field. Side-Firing Bassreflex Port geometry enhances internal airflow and acoustic loading, supporting output performance that far exceeds expectations for the cabinet’s reduced physical volume.

Designed for real-world production demands, VIO L1608 incorporates several engineering principles that shaped the success of the VIO L1610, adapted here for the dual-8" platform. This includes improved environmental protection, an enhanced 3-point rigging system for faster deployment and current-generation VIO technologies such as inclinometer integration, opto-isolated preamps, NFC-assisted positioning, and a bright front ID LED for positioning and identification.

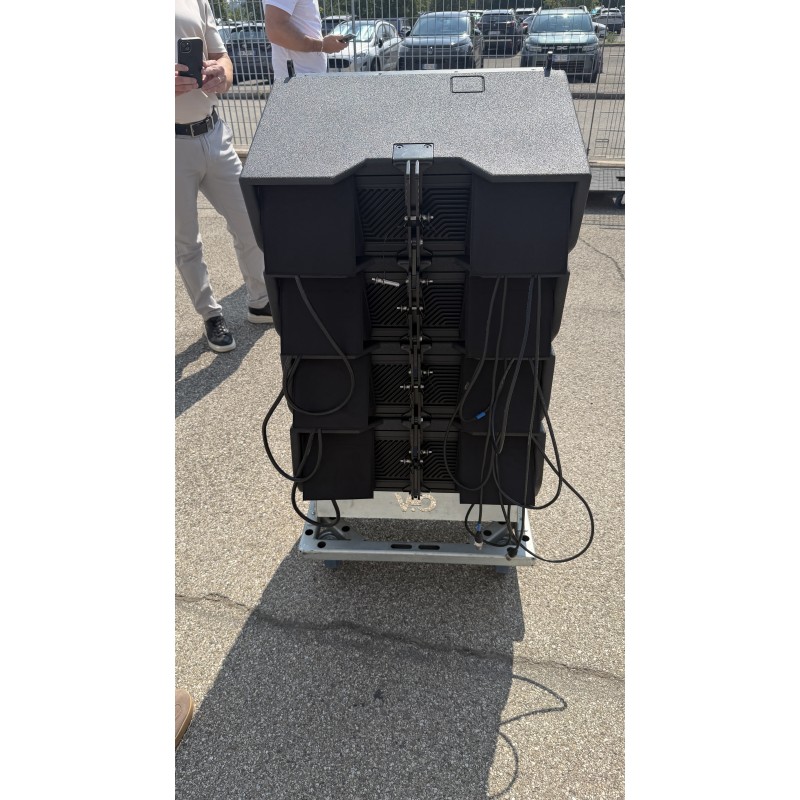

For the first time in a VIO module, the award-winning A2Net protocol is included as a standard feature, enabling high-resolution digital audio distribution and complete Aurora Net control. As part of the VIO ecosystem, L1608 benefits from matched phase response, latency and sensitivity across systems running firmware 2.0 or later, allowing seamless integration with VIO L1610, L212 and other modules in the platform. The new DRK-28 flybar supports both flown and stacked configurations and transports on the dolly, simplifying logistics and reinforcing a unified deployment workflow.

With its distinct acoustic architecture, deceptively compact footprint and dramatic output, VIO L1608 represents an evolution for compact professional sound reinforcement.

TECHNICAL DATA

Speaker Type    3-way Active Line Array Module

ACOUSTICAL DATA

Usable Bandwidth     [- 10 dB]67 Hz - 20 KHz

Frequency Response     [+/- 6dB]75 Hz -18 KHz

Max SPL    138.5 dB (AES75)**137.5 dB

HF    1x1.4"

Voice Coil HF    3" -2" coaxial

Type HF    Neodymium

LF    2x8"

Voice Coil LF    2.5"

Type LF    Neodymium

Horizontal Directivity    110°

Vertical Directivity    depends on array size and configuration

AMPLIFIER

Amp Class    Class-D with PFC

Power RMS    1600 W (4x400 W)

Peak Power    3200 W

CoolingConvection

PROCESSOR

DSP    32 bit 96 KHz audio processor

AD/DA Converter    24 bit/96 KHz

Limiter    Dual Active Peak, RMS, Thermal

Processing (filters)    FIR Linear Phase Filters

Crossover Frequency LF-HF    650Hz – 4500Hz

INPUT

Signal Input    1xXLR fem, Bal.

Signal Output    1xXLR male, Bal.

Network    RDNet remote control RJ45 connector IN/OUT

Mains Connections    1x PowerCON TRUE1 In1x PowerCON TRUE1 Out

Controls

1 switch System test

2 rotary encoder (DSP preset)

Led MUTE/PROT

Led READY

Led SIGNAL

Led LIMITER

LED TEST

(A2Net card)

Led LINK

Led ACTIVE

Led PRESET

Led DIGITAL AUDIO

MECHANICS

Housing    Multiplex Plywood Polyurea painted

Handles    1 x Side, 2 on back

Rain Cover    Included

Rigging Points    Integrated 3-point flying hardware

Width    600 mm (23.62 in)

Height    260 mm (10.23 in)

Depth    390 mm (15.35 in)

Weight    22 Kg (48.50 lbs)
