VIO X15

2-WAY ACTIVE LOUDSPEAKER

900 W RMS CLASS-D DIGIPRO®G3 AMPLIFIER

MAX SPL 133.5 dB

FREQUENCY RESPONSE [-6dB]: 72 - 21.000 Hz

AURORA NET READY

HF: 1x 1.4”, 2.5" NEODYMIUM

LF: 1x 15”, 3" NEODYMIUM

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.

The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets.

All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.

On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).

TECHNICAL DATA

Speaker Type    2 Way Active Loudspeaker

ACOUSTICAL DATA

Frequency Response     [-10dB]    55 - 22.000 Hz

Frequency Response     [-6dB]      72 - 21.000 Hz

Max SPL    133.5 dB

HF    1x 1.4”, 2.5" Neodymium

LF     1x 15”, 3" Neodymium

Directivity    60° x 40°

Horn    Rotatable Horn

AMPLIFIER

Amplifier    900 W RMS Class-D Digipro® G3

Cooling    Class-DConvection

Power Supply    Auto-range SMPS

PROCESSOR

Controller    DSP 28/56 bit

AD/DA Converter    24 bit/48 kHz

Limiter    Peak, RMS, Thermal

Processing    FIR Linear Phase Filters

INPUT

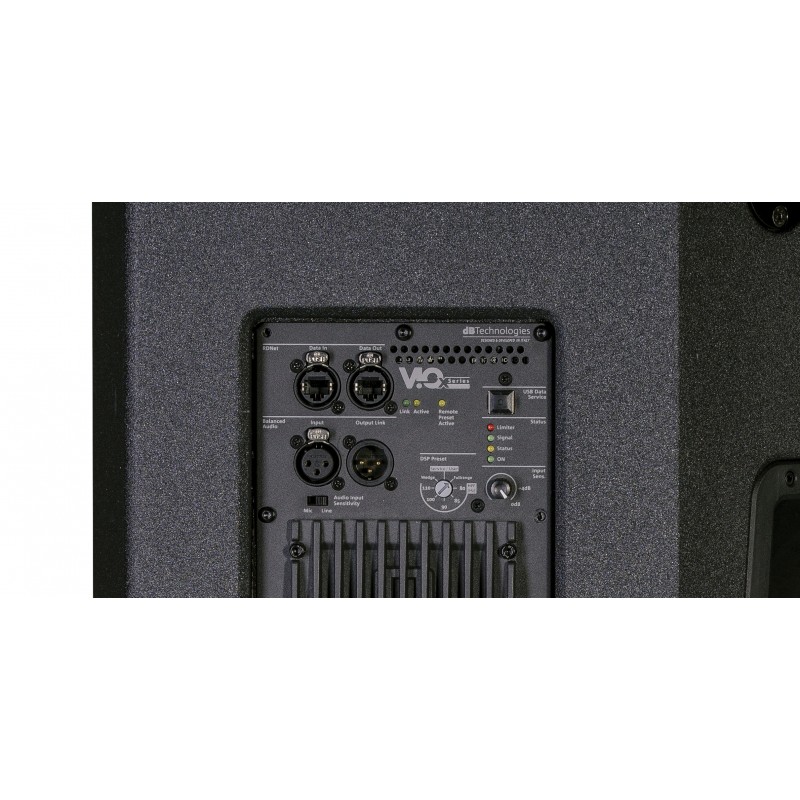

Signal Input    1 x XLR balanced, 1 x RJ45 Link (RDNet)

Signal Output    1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket    1x PowerCON TRUE1 In    1x PowerCON TRUE1 Out

Controles    1x Rotary Encoder (8x EQ, HPF presets)    1x Input sensitivity potentiometer    1x Mic / line switch

Special Features    Opto-isolated floating pre-amp

MECHANICS

Housing    Wooden Cabinet, Polyurea painting

Handles    1x (top), 2x (side)

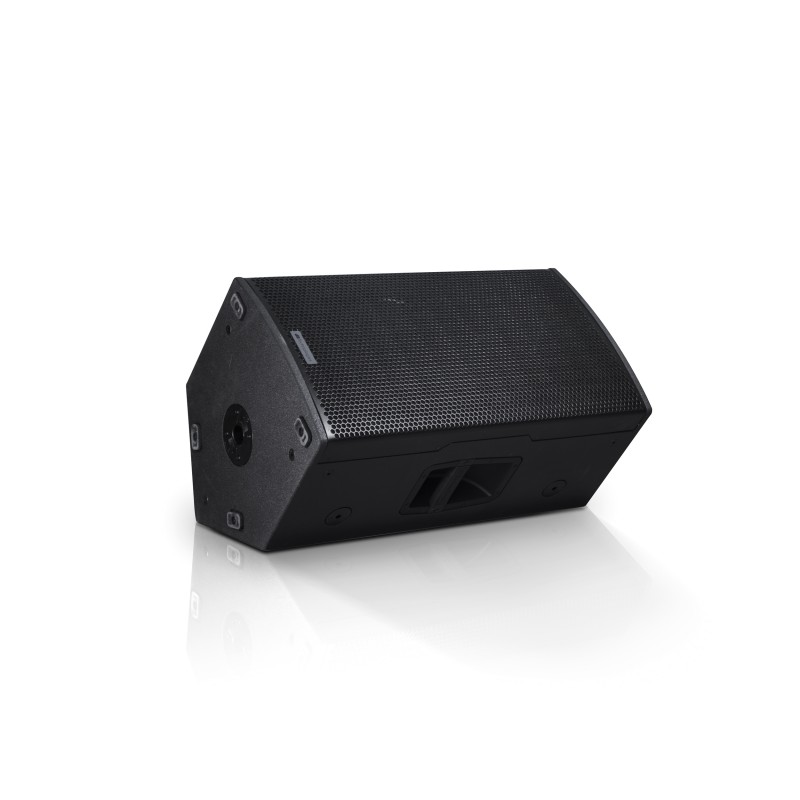

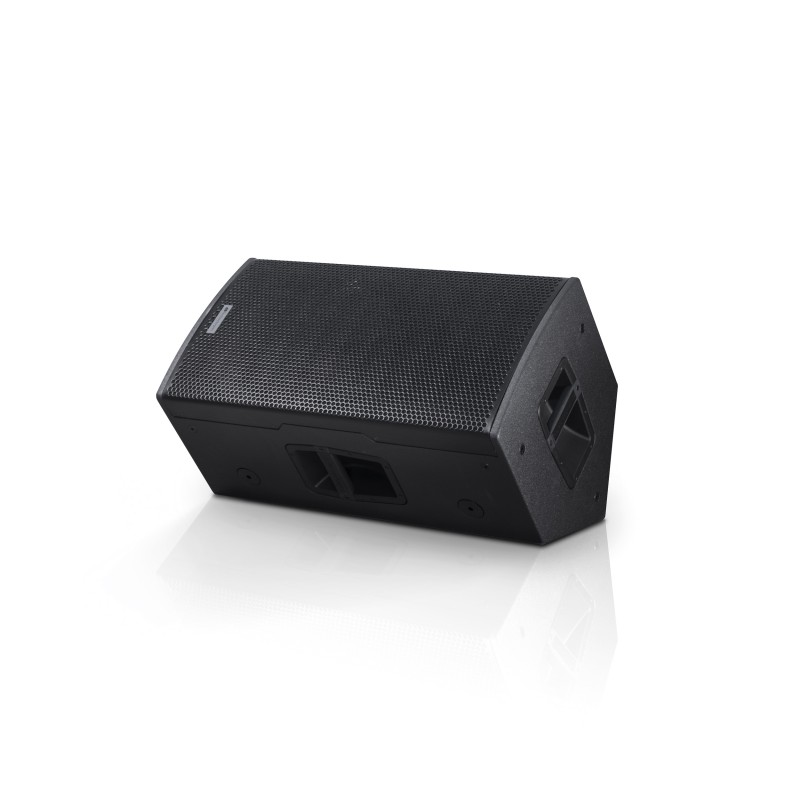

Wedge Angle    Monitor Use 50°

Rigging points    12x M10 Thread + 4x Fast lock pins

Pole Mount    Ø36 mm

Width    400 mm (15.74 in)

Height    750 mm (29.52 in)

Depth    475 mm (18.7 in)

Weight    25.4 kg (55.99 lbs)
