VIO S218

3200W RMS DIGIPRO® G4 AMPLIFIER

143 dB MAX SPL

USABLE BANDWIDTH [- 6 dB]: 28 Hz to cut frequency

DANTE & A2NET READY

LF: 2 x 18”, 4” v.c. - NEODYMIUM

Weight: 85.6Kg (188.72 lbs)

The perfect partner for large sound reinforcement applications. A simple, effective dual sub configuration designed to enhance the reproduction of the lowest frequencies, boosted by an advanced DSP control and complete network capability.

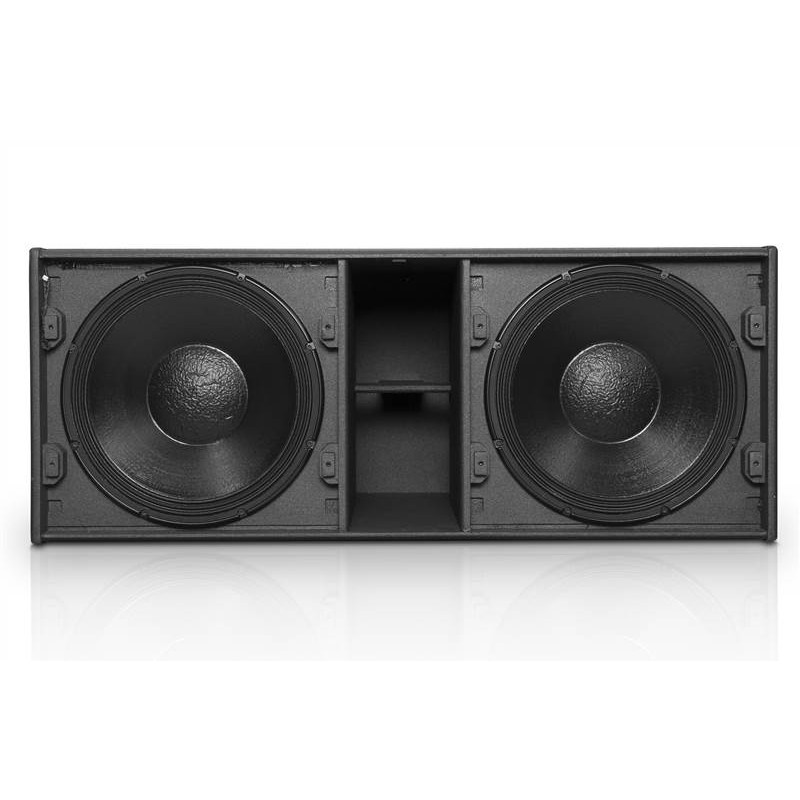

Featuring a dual 18" subwoofer pairing in a voluminous bass-reflex housing, VIO S218 encompasses a vigorous audio performance and a ultra low frequency punch, extending down to 28 Hz: the perfect bottom-end addition to large VIO L212 sound reinforcement systems.

As a default, VIO S218 is equipped with dBTechnologies RD-Net card, for real time remote control via Aurora Net software. Furthermore, the preamplifier is ready for future upgrades with Audinate DanteTM AoIP protocol. To help users in this configuration, S218 comes with built-in technologies: Near Field Communication (NFC™) proximity sensors are used to determine the position of each box within an array. This technology, together with a hi-brightness LED bulb on the front of the enclosure, contributes to help the user to recognize, identify and match each box physical position on the remote control software Aurora Net. The amp also allows users to run auto-test on electronics and transducers before and after use and a real time impedance control. This unique system ensure tour-grade reliability and remote control over your entire PA’s health.

A cardioid stack preset button automatically process the sound of the backward sub in gradient inverted stack configurations, in order to reach maximum cancellation of the rear side. The on-board delay module allows VIO S218 to reach a max 9.9ms delay with 0.1 ms steps.

Speaker Type    Active Bassreflex subwoofer

Frequency Response     [- 10 dB]27 Hz (HPF)

Frequency Response     [- 6 dB]28 Hz to cut frequency (Xover dependent)

Max SPL    143 dB

LF    2x18” Neodymium

Voice Coil LF    4”

Directivity    Omnidirectional

Amplifier    3200 W RMS [2x 1600 W RMS Class-D Digipro® G4]

Cooling    Passive convection, internal fan

Power Supply    Full-range SMPS with PFC (100V~-240V~, 50-60Hz)

Controller    DSP 32 bit

AD/DA Converter    24 bit/96 kHz

Limiter    Peak, RMS, Thermal

Delay Option    0 - 9.9 ms internal | steps of 0.1 ms [on-board]

Crossover Frequency LF-HF    Selectable 60-110 Hz + Full Range (8 steps)

LF-Xover out slope    24 dB/Octave

Signal Input    1x XLR balanced 1x USB Data Service

Signal Output    1x XLR balanced

Network    RDNet Card (1x RJ45 IN 1x RJ45 Link)Dante Card [Optional]

Power Socket    1x PowerCON TRUE1 In1x PowerCON TRUE1 Out

Controls

1x Input Attenuation Rotary Encoder

2x Delay Rotary Encoder (0-9.9 ms)

1x Polarity Inversion Switch (0° or 180°)

1x Cardioid mode Switch

1x X-Over Frequency Rotary Encoder (8 steps)

Special Features

NFCTM and Frontal LED Identification System

380V Resistant SMPS

IPOS Intelligent Power-On Sequence

Opto-isolated floating pre-amp

System Test (transducers diagnostics)

Housing    Multiplex plywood - Polyurea painting

Handles    4x Side. Aluminium

Rain cover    Included

Rigging Points    2x Pick Points on top for DRK-210 rigging frame

Width    1300 mm (51.18 in)

Height    520 mm (20.47 in)

Depth    800 mm (31.5 in)

Weight    85.6 kg (188.72 lbs)
